Description

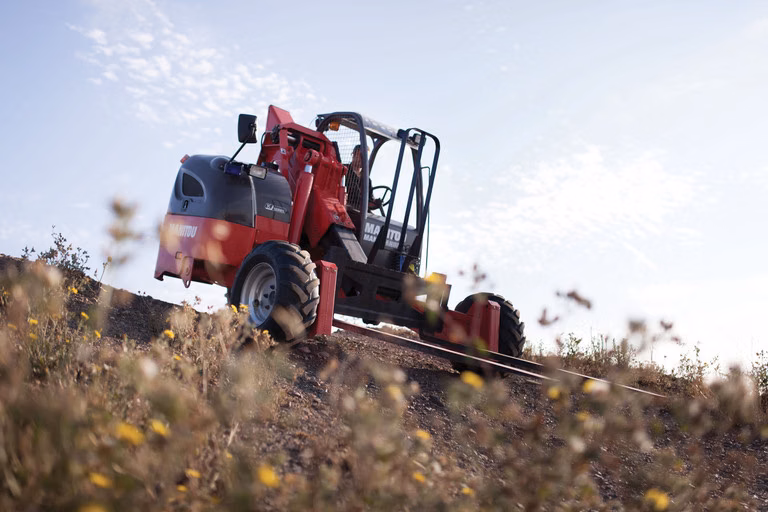

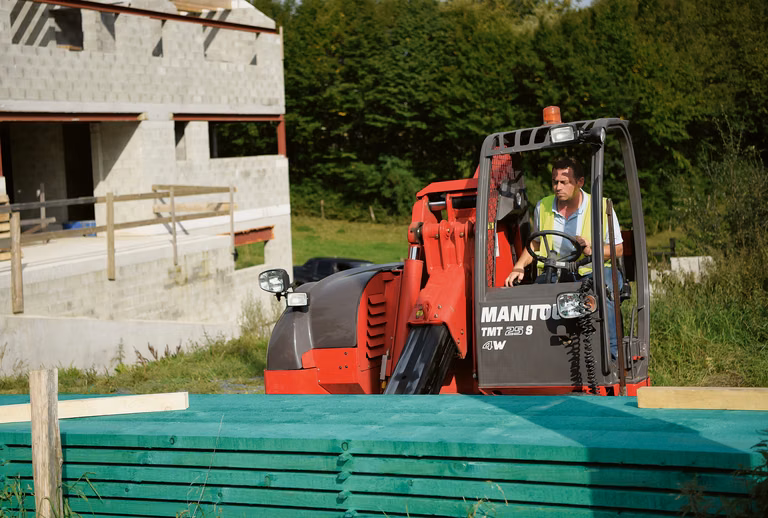

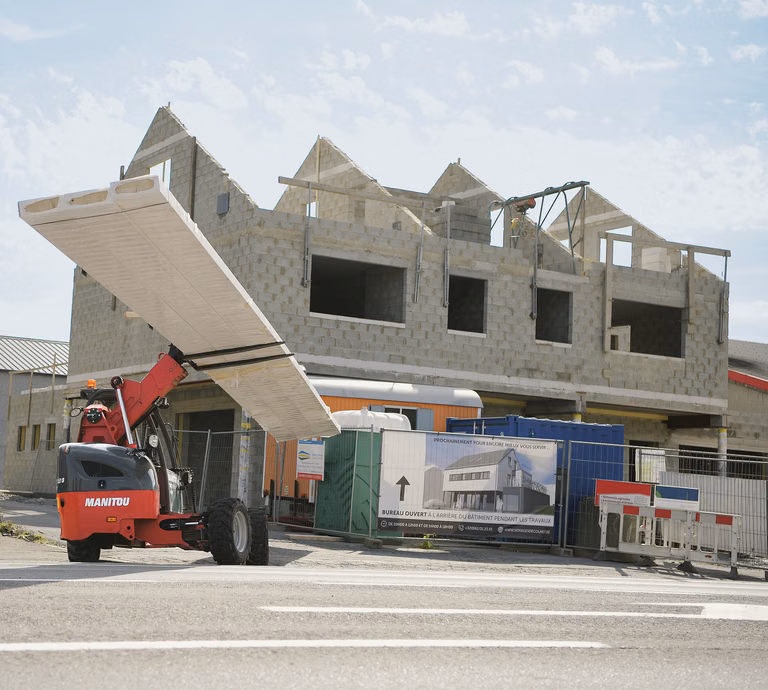

The TMT 55 HT 4W heavy-traction truck-mounted forklift designed for single-side loading and unloading of lorries and making customer deliveries even when ground conditions aren't as smooth as they could be, or when a loading/unloading bay is not available. It's incredibly useful in the construction sector for materials delivery with its increased robustness and reduced payload. Built to last, the controls are incredibly easy to grasp and upkeep has been simplifed as well. With offset and lateral movement modes, it can load and unload lorries from a single side with no problems. This is particularly useful when lorries are parked alongside a wall, on the side of the road or if you have to navigate a narrow path.
Specifications
Manufacturer
Manitou
Model
TMT 55 HT 4W Y ST5
Year
2026
Category
Forklifts / Lift Trucks
Subcategory
Truck Mounted Forklifts
Reach out equipment
Telescopic boom
Power source
Diesel
Operator type
Sitting
Max capacity
5512 lb
Load center of gravity
24 in
Load distance, centre of drive axle to fork
-20 in
Wheelbase
65 in
Service weight
6316 lb
Tyres type
Pneumatic
Number of front wheels / rear wheels
2 / 1
Drive wheels (front / rear)
2 / 1
Front wheel gauge
86 in
Lifting speed (laden / unladen)
0.82 ft/s / 0.89 ft/s
Lowering speed (laden / unladen)
0.95 ft/s / 1 ft/s
Type of drive control
Mechanical
Working hydraulic pressure for attachments
3916 PSI
Oil flow rate for attachments
12 US gpm
Measured/guaranteed mean noise level at the ear of the operator
104 dB
Dimensions of front wheels
10x16,5
Dimensions of rear wheels
31x15,5-15
Mast/fork carriage tilt, forward
100 °
Mast/fork carriage tilt, backward
12 °
Height telescopic boom lowered
89 in
Mast free lift
57 in
Max lifting height
134 in
Height telescopic boom extended
154 in
Height of overhead guard (cabin)
93 in
Height of low overhead guard (option)
85 in
Seat height/stand height
55 in
Overall length
111 in
Length to face of forks
63 in
Overall width
96 in
Forks section / width / length
2 in x 4 in x 48 in
Fork carriage ISO 2328 (class/form) A/B
FEM 2A
Fork carriage width
50 in
Distance between support arms
49 in
Distance between wheel arms/loading surfaces
60 in
Ground clearance at centre of wheelbase
11 in
Aisle Width for pallets 1000 x 1200 crossways
79 in
Aisle width for 800 x 1200 pallet lengthways
76 in
Turning radius
123 in
Internal turning radius (over tyres)
4 in
Service brake
Hydraulic brakes by loss of pressure
Quick Enquiry
(402) 307-9483
4350 Main Ave, Fargo ND 58103
⬅ Scan the QR code for more information
Forklifts / Lift Trucks Manitou Machines for Sale Fargo
Find this Manitou TMT 55 HT 4W Y ST5 at Fargo, ND
4350 Main Ave, Fargo ND 58103
Hours of Operation*
Sat & Sun - 24 Hour On Call Service
Today12:00am - 11:00pm
Sunday12:00am - 11:00pm
Monday7:00am - 5:00pm
Tuesday7:00am - 5:00pm
Wednesday7:00am - 5:00pm
Thursday7:00am - 5:00pm
Friday7:00am - 5:00pm
*Local time zone: UTC -05:00
Similar Listings

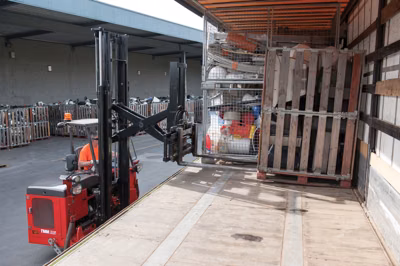

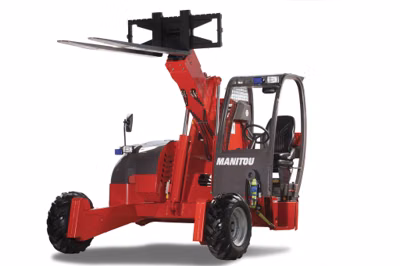

2025 Manitou TMT 55 HT 4W Y ST5
25
Forklifts / Lift Trucks • Truck Mounted Forklifts

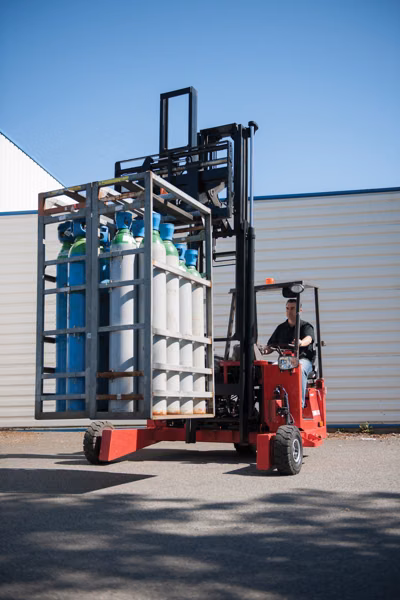

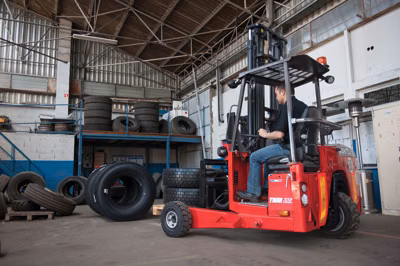

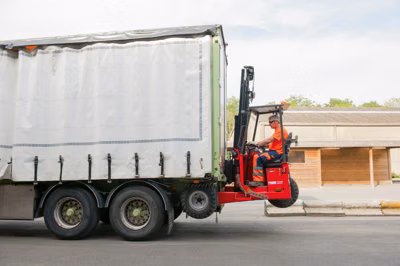

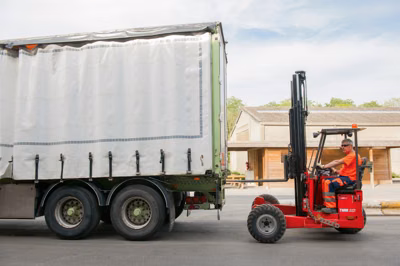

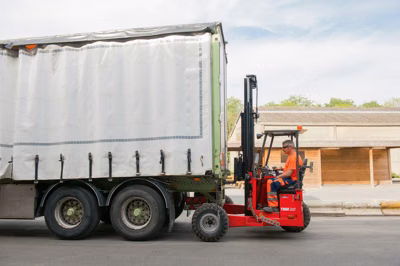

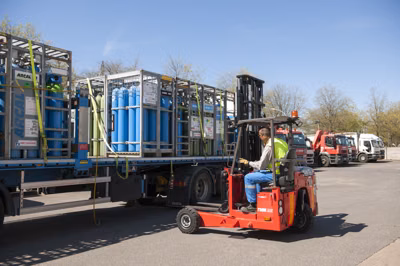

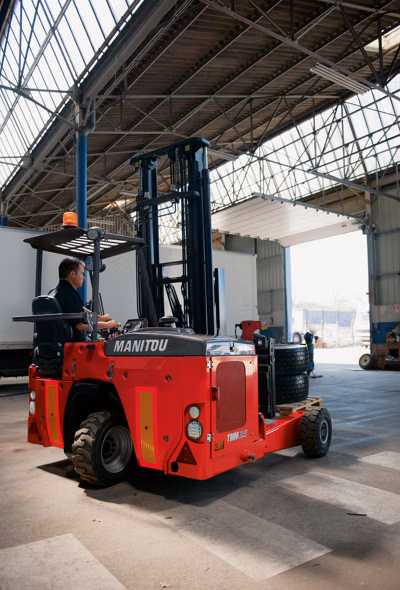

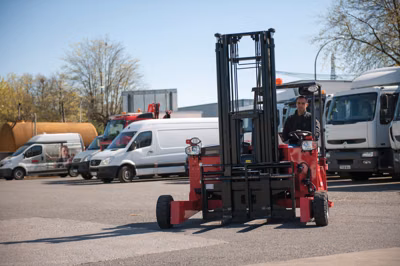

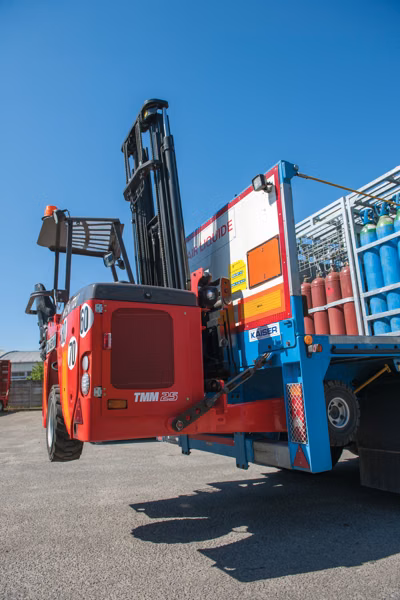

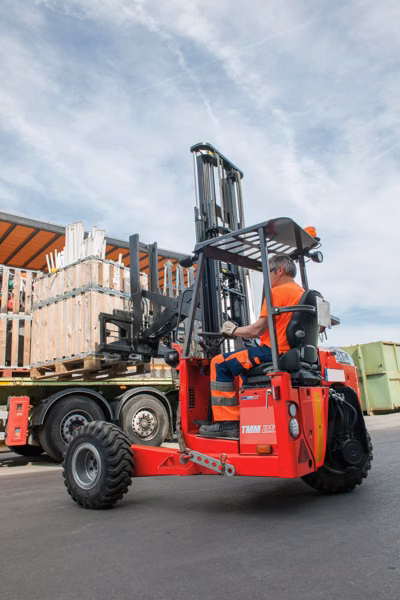

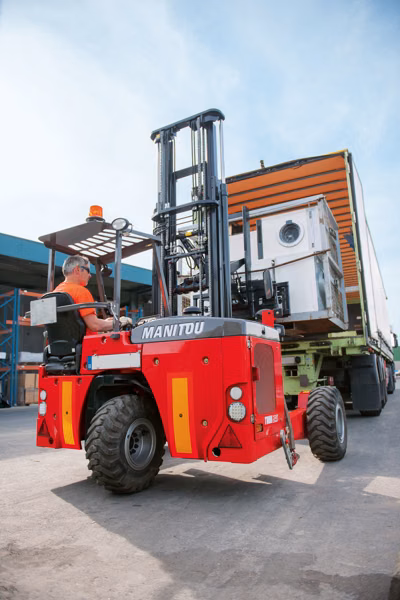

2026 Manitou TMM 45 K ST5
15
Forklifts / Lift Trucks • Truck Mounted Forklifts

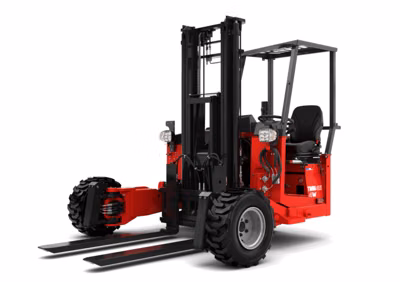

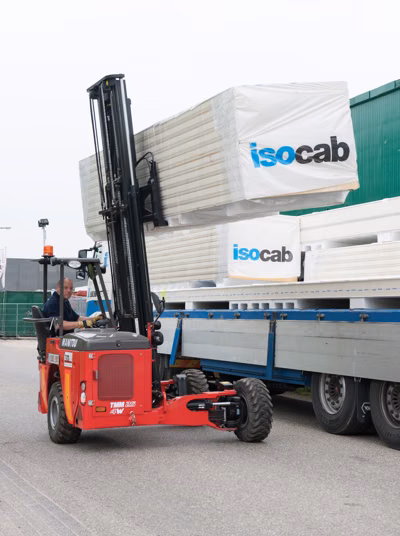

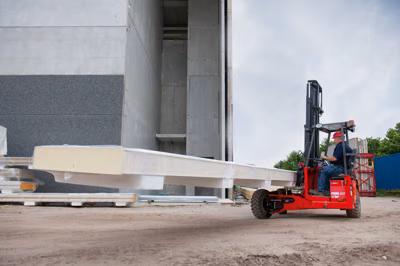

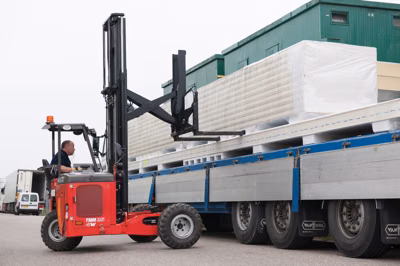

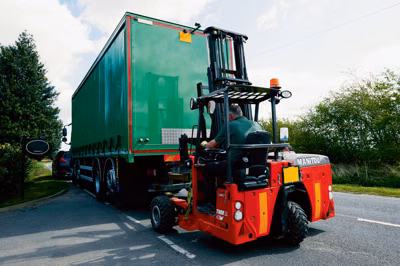

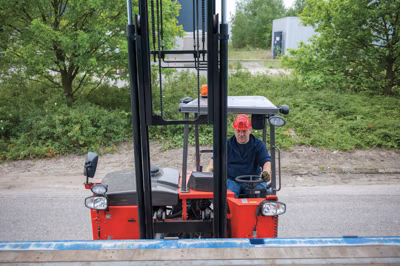

2026 Manitou TMM 45 4W K ST5
10
Forklifts / Lift Trucks • Truck Mounted Forklifts

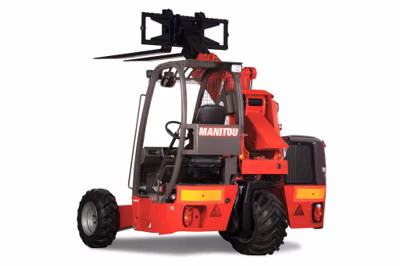

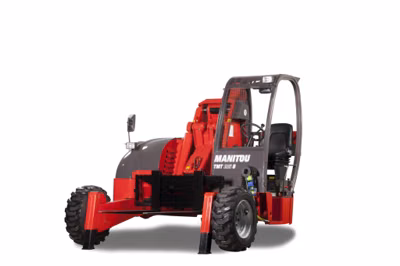

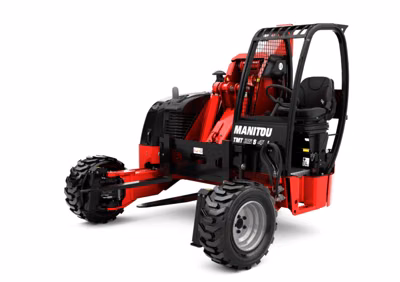

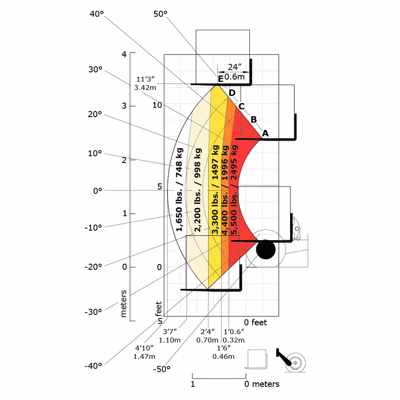

2026 Manitou TMT 55 HT Y ST5
