Description

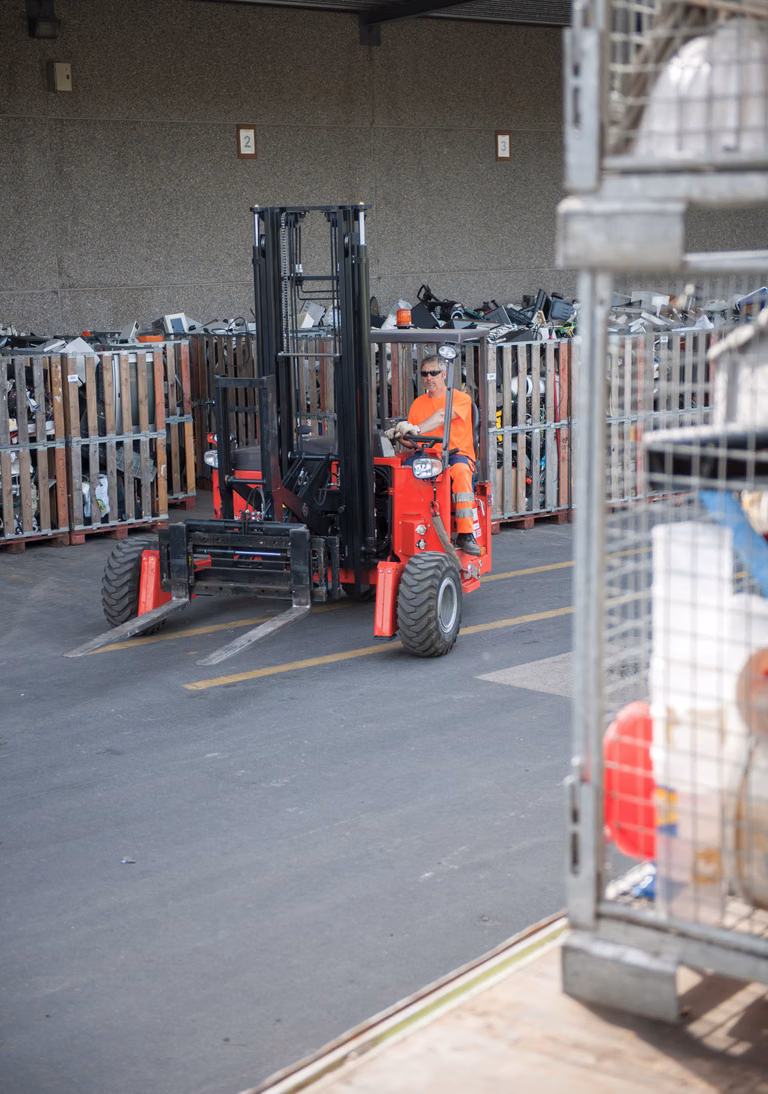

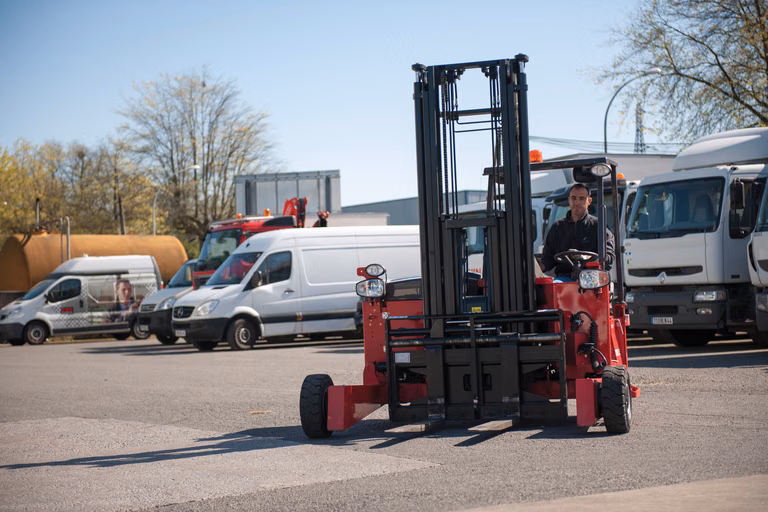

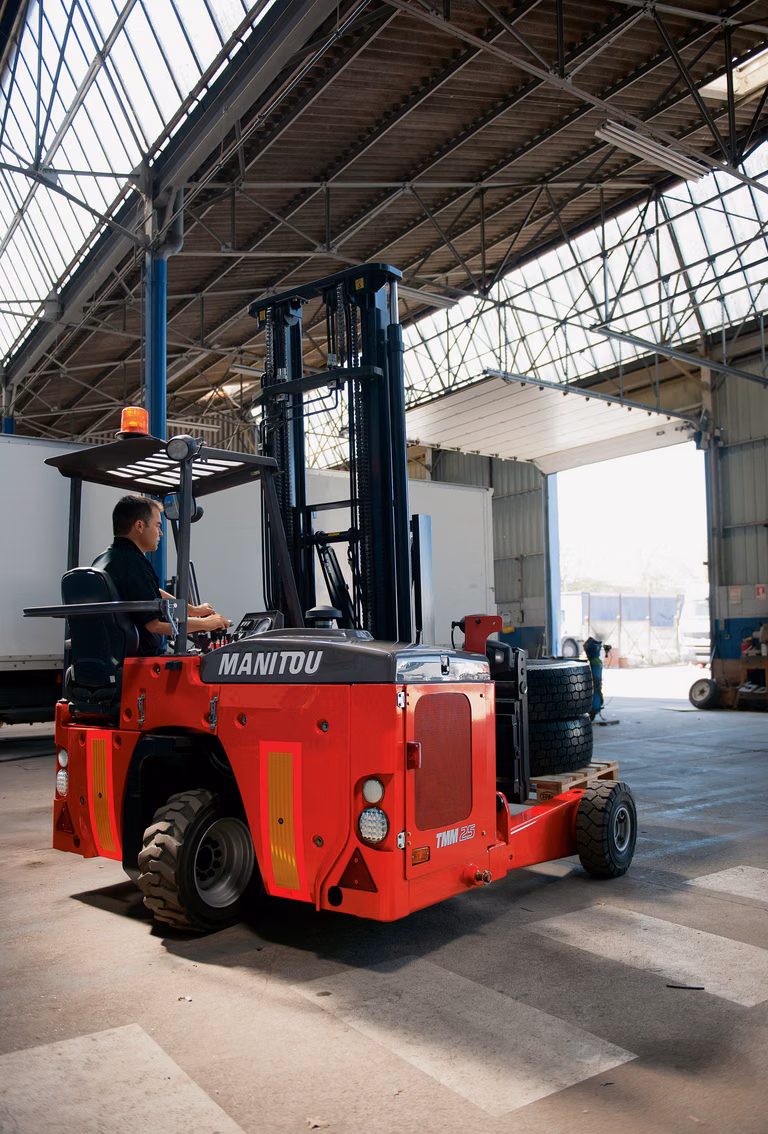

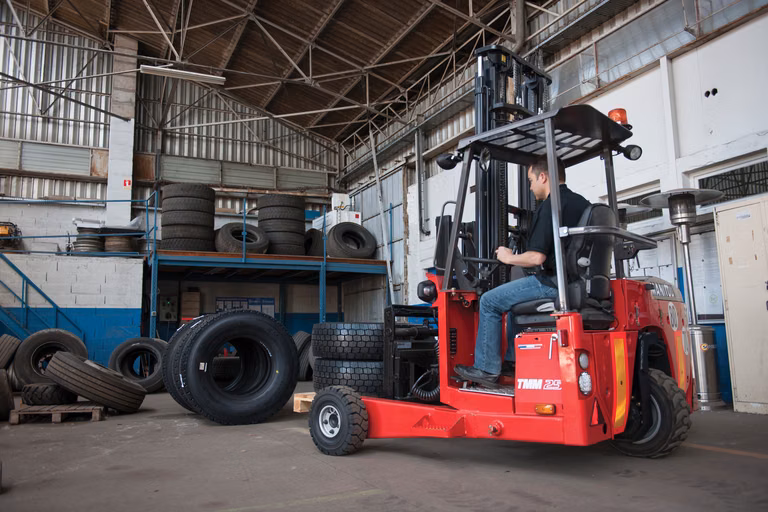

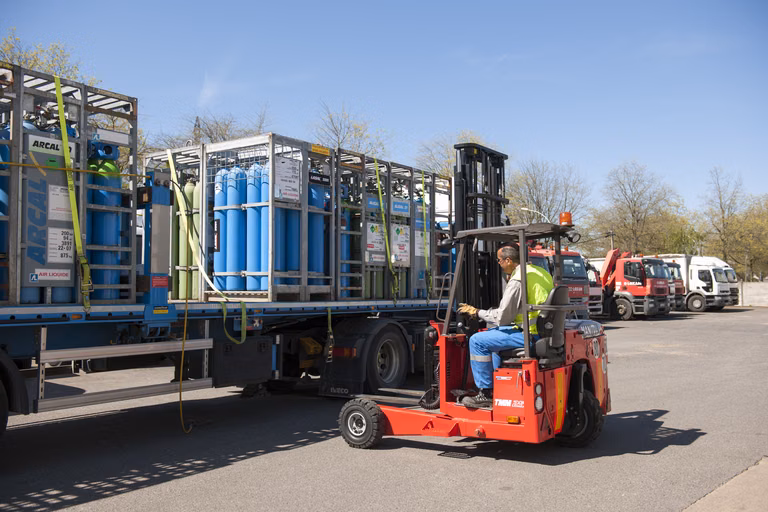

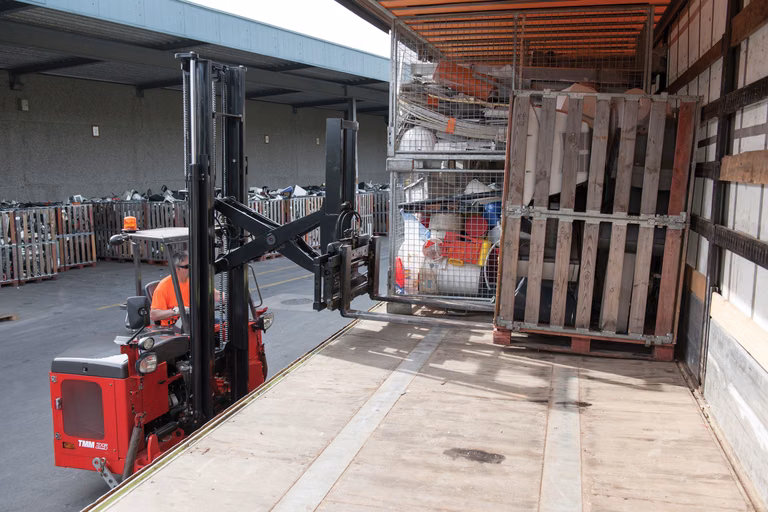

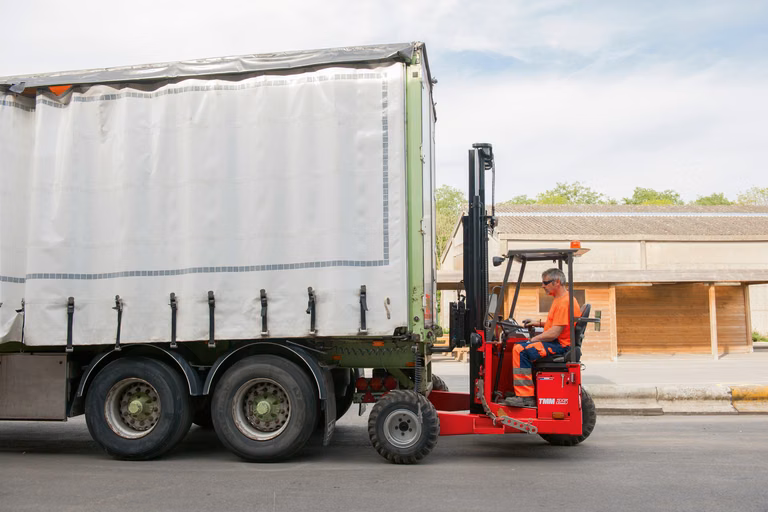

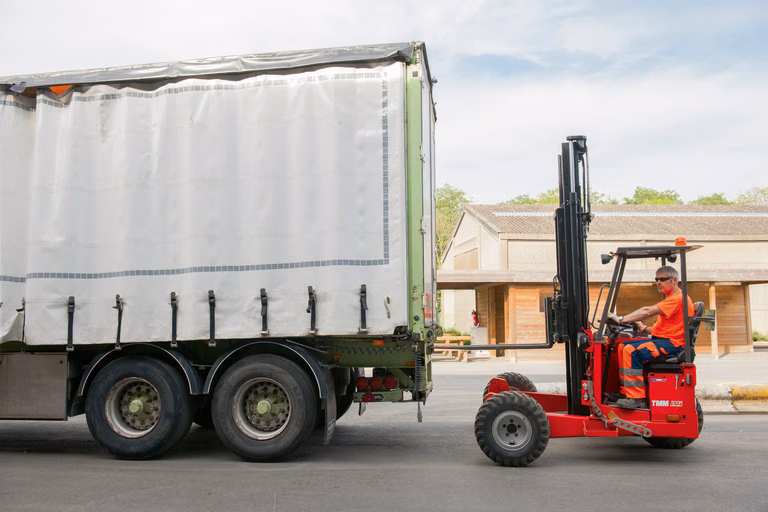

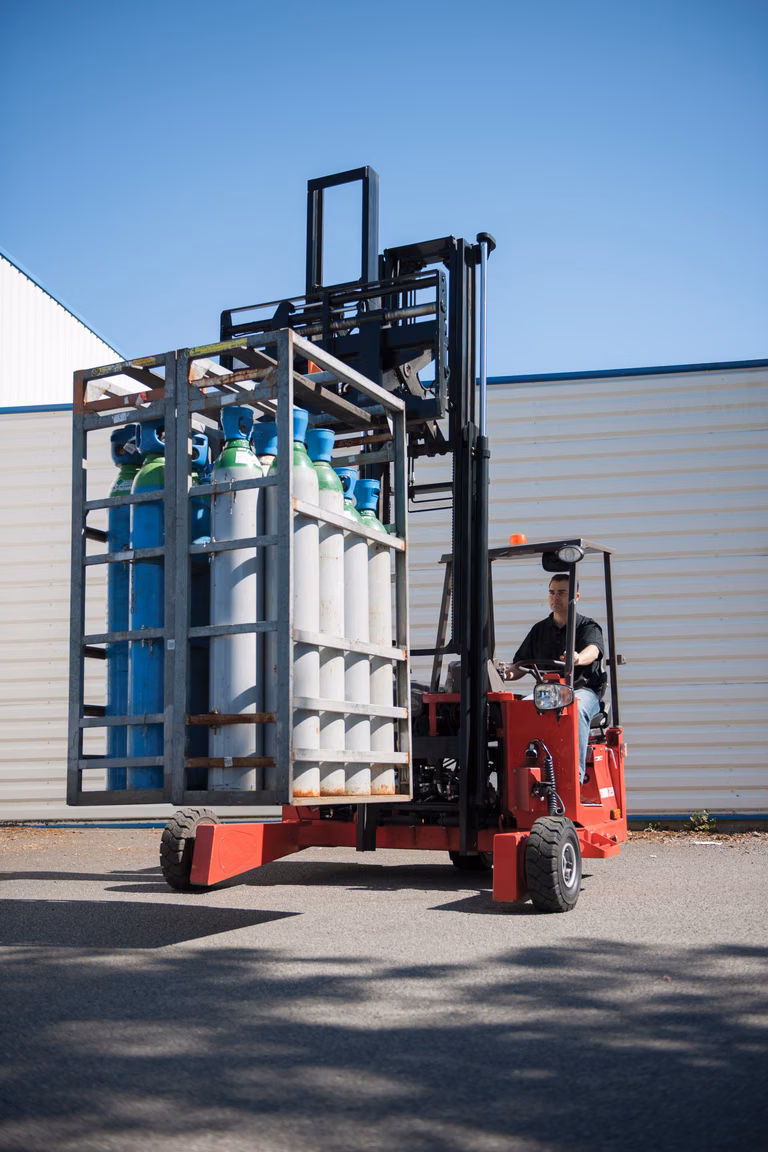

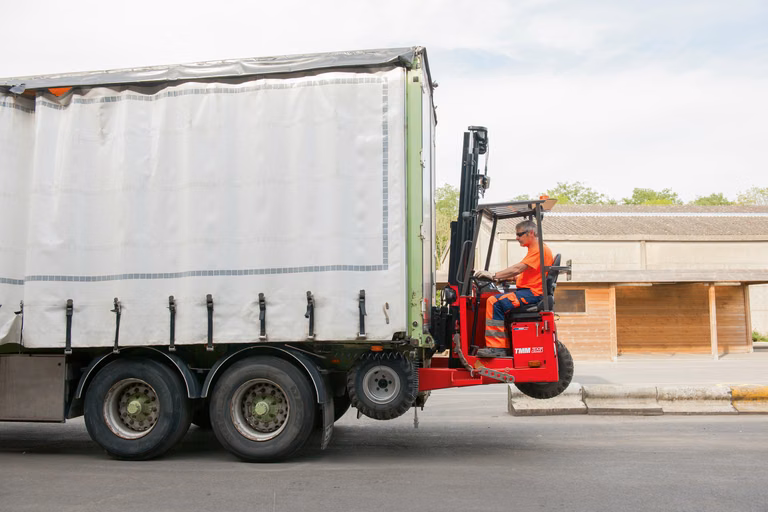

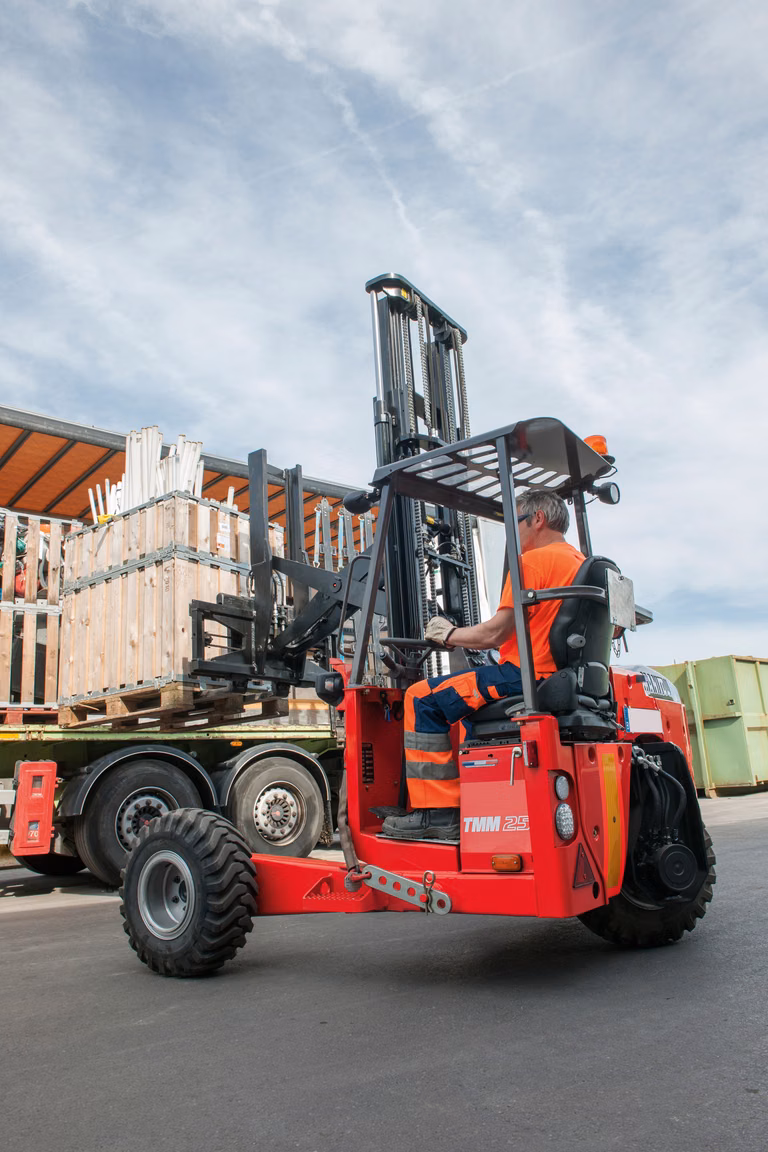

The TMM 45 is an on-board industrial truck that allows carriers to be completely autonomous during their deliveries and loading in semi-urban areas.Compact and light, it can be easily attached to the truck and can be adapted to all attachment kits on the market. Its high lifting height of up to 3.9 m, the lateral displacement of its mast and its 3 driving wheels make the TMM 45, this on-board industrial truck, efficient and easy to handle on all types of ground.For a better stability and a greater comfort of work, this industrial truck is equipped with stabilizers, a control to change the direction of travel and a mixed pedal inching/braking to adjust the speed in all circumstances.
Specifications
Manufacturer
Manitou
Model
TMM 45 K ST5
Year
2026
Category
Forklifts / Lift Trucks
Subcategory
Truck Mounted Forklifts
Manufacturer
MANITOU
Model Name
TMM 45 K ST5
Reach out equipment
Pantograph
Power source
Diesel
Operator type
Sitting
max capacity
4409 lb
Load centre of gravity
24 in
Load distance, centre of drive axle to fork
20 in
Wheelbase
63 in
Service weight
5049 lb
Weight on front axle (laden) / rear axle (laden)
6724 lb / 2734 lb
Weight on front axle (Unladen) / rear axle (Unladen)
2315 lb / 2734 lb
Tyres type
Pneumatic
Dimensions of front wheels
27x10-12 IC30
Dimensions of rear wheels
27x10-12 IC30
Number of front wheels / rear wheels
2/1
Drive wheels (front / rear)
2/1
Front wheel gauge
85 in
Travel speed (laden / unladen)
6 mi/h / 6 mi/h
Lifting speed (laden / unladen)
0.85 ft/s / 0.79 ft/s
Lowering speed (laden / unladen)
1 ft/s / 0.79 ft/s
Gradeability (laden / unladen)
56 % / 51 %
Service brake
Hydraulic brakes by loss of pressure
Acceleration time (laden / unladen)
4.10 s / 2.60 s
Transmission type
Hydrostatic
Working hydraulic pressure for attachments
2756 PSI
Oil flow rate for attachments
11 US gpm
Sound level at the driver's ear according to DIN 12 053
84 dB
Tilting of carriage Forward
8 °
Tilting of carriage Backward
7 °
Height telescopic boom lowered
93 in
max lifting height
118 in
Height telescopic boom extended
175 in
Height of overhead guard (cabin)
82 in
Seat height/stand height
41 in
Overall length
102 in
Overall width
91 in
Forks section / width / length
2 in x 5 in x 47 in
Fork carriage ISO 2328 (class/form) A/B
2A
Fork carriage width
50 in
Distance between support arms
46 in
Distance between wheel arms/loading surfaces
63 in
Maximum horizontal extension at COG 600
40 in
max outreach
40 in
Ground clearance at centre of wheelbase
9 in
Aisle width for 800 x 1200 pallet lengthways
132 in
Turning radius
97 in
Internal turning radius (over tyres)
26 in
Engine brand / norm
Kubota - Stage V
Engine power according to ISO 1585
18 kW
Rated speed
3000 rpm
Number of cylinders / Capacity of cylinders
3 - 69 in³
Type of drive control
Cable
