Description

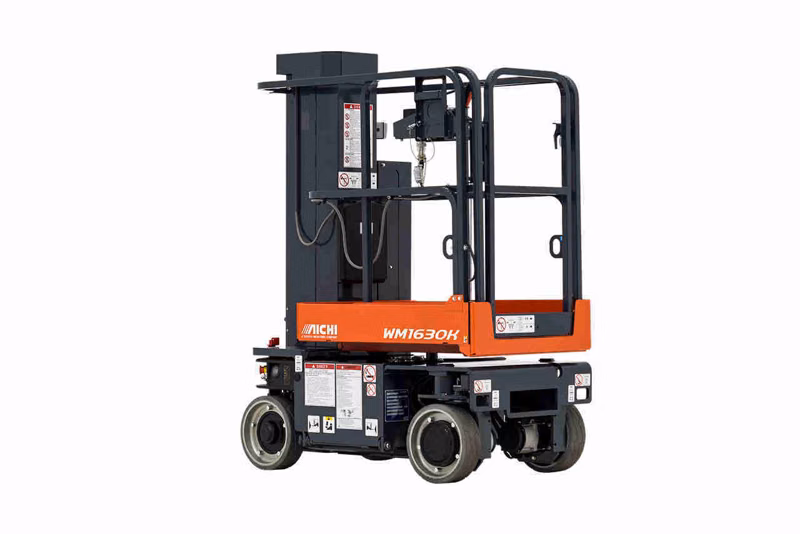

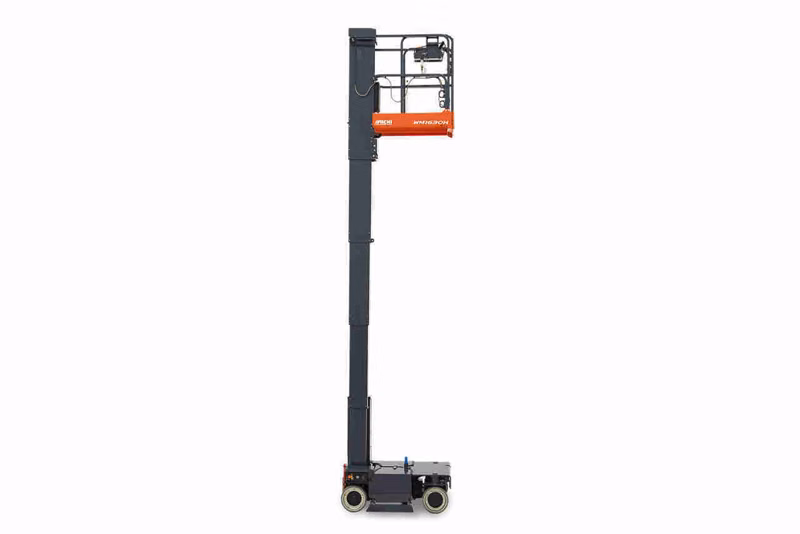

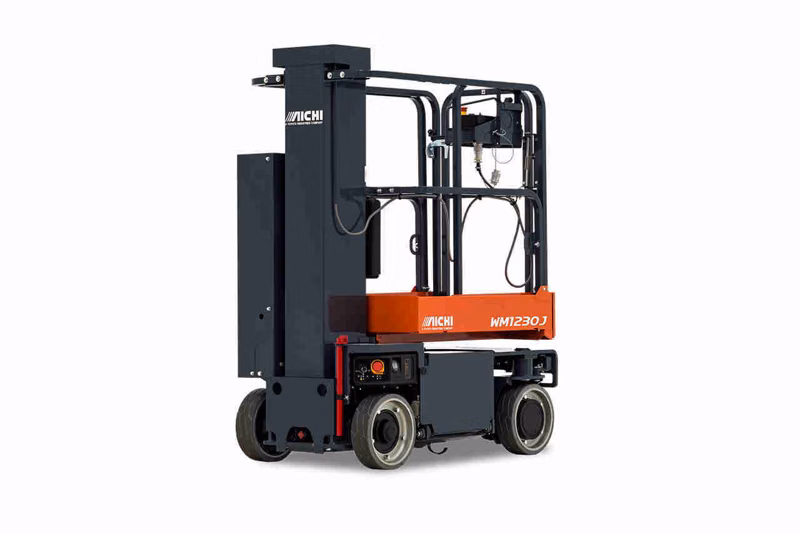

The AICHI Vertical Mast Lift delivers a versatile solution for tight-fitting construction and maintenance needs like piping, electrical, plumbing, and painting. A zero-degree turn radius is the key to accessing hard-to-reach locations. Using a state-of-the-art AC Drive Motor, it also offers precise travel and industry-leading run time that equate to greater efficiency and low cost of ownership.
Specifications
Manufacturer
Toyota Material Handling
Model
WM1630J
Year
2027
Category
Aerial Work Platforms
Subcategory
Aichi Vertical Mast Lift
Overall Length ft in (m)
4' 8" (1.42)
Overall Width in (cm)
30 (76)
Overall Height ft in (m)
6' 2" (1.88)
Turning Radius (Outside) in (m)
50.4 (1.28)
Ground Clearance (Center of Wheelbase) in (cm)
2.6 (6.5)
Ground Clearance (w/ Pothole Protectors Deployed) in (cm)
0.63 (1.6)
Wheelbase in (m)
39.6 (1.0)
Tire Size (Diameter x Width) in (cm)
12.7x3.9 (32.3x10)
Tread (Front and Rear) in (cm)
26 (66)
Platform Capacity at Lift Height lb at in (kg at m)
500 @ 189 (227 @ 4.81)
Platform Working Height ft (m)
21' 9" (6.6)
Platform Height (Lowered) in (m)
1' 10.5" (0.57)
Platform Height (Elevated) ft (m)
15' 9" (4.81)
Platform Inner Length in (cm)
38.6 (98)
Platform Extension Length in (cm)
15 (38)
Platform Inner Width in (cm)
23.2 (59)
Platform Railing Height in (cm)
43.3 (110)
Maximum Drive Height ft (m)
15' 9" (4.81)
Lift Control System
Semi-Proportional
Vehicle Weight lb (kg)
2315 (1050)
Ground Bearing Pressure psi
137.8
Platform Extension Capacity lb (kg)
249 (113)
Number of Mast Stages #
5
Platform Lift/Lower Time sec
20/18
Max Travel Speed (Lowered) mph (km/h)
3 (4.8)
Max Travel Speed (Elevated) mph (km/h)
0.5 (0.8)
Voltage V
2
Platform Lift Time (sec)
15 - 20
Platform Lower Time (sec)
18
Drive & Steer System
Joystick with Steering Switch
Gradeability2,3 deg (%)
17° (30%)
Tire Type
Solid
Lift Control System
Semi-Proportional
Maximum Drive Height ft (m)
15’ 9” (4.81)
Platform Height (ft)
15.8
