2027 Toyota Material Handling THDA40/60
Forklifts / Lift TrucksHigh-Capacity Adjustable Wheelbase
Description

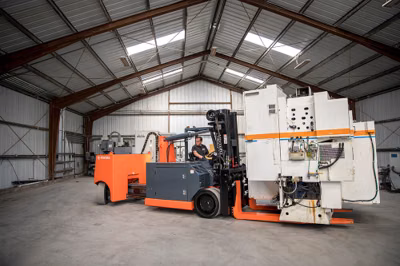

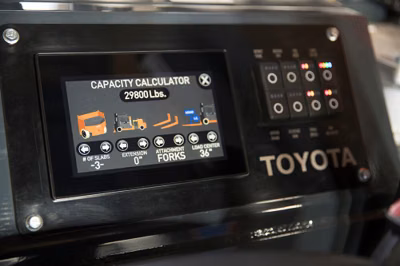

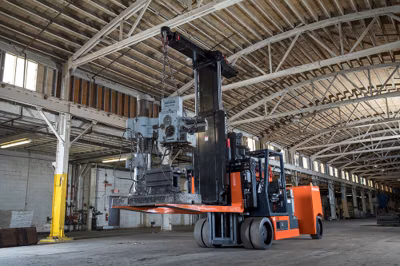

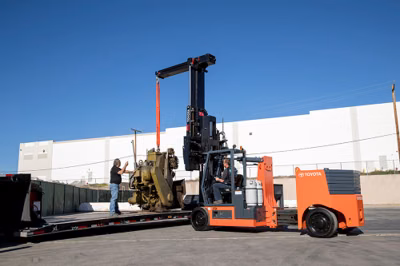

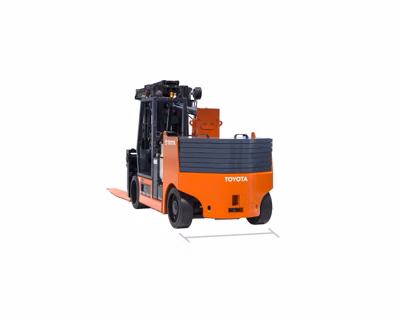

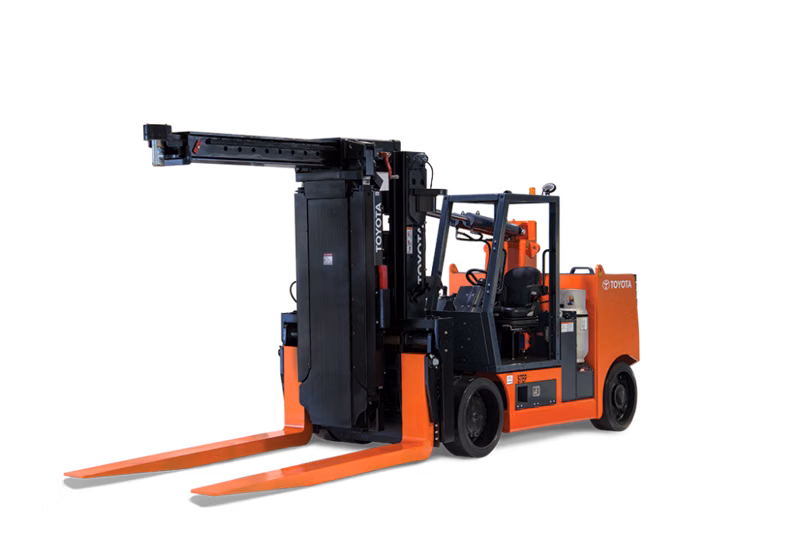

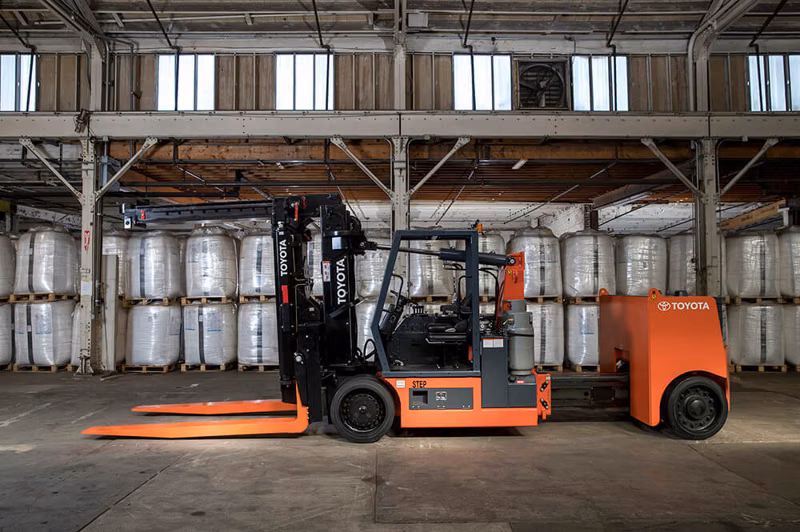

The Toyota High-Capacity Forklift with Adjustable Wheelbase is a master of flexibility. This sit down counterbalanced forklift allows operators to make adjustments to varying load weights with an extendable counterweight that includes removable slabs. Need to move a big, awkward item? The multi-stage telescopic boom is able to safely and efficiently move large equipment such as industrial machinery or massive engines.
Specifications
Manufacturer
Toyota Material Handling
Model
THDA40/60
Year
2027
Category
Forklifts / Lift Trucks
Subcategory
High-Capacity Adjustable Wheelbase
Maximum Fork Height (top of forks)
104.5 in (2654.3 mm)
Free Lift (top of forks)
48.75 in (1238.3 mm)
Fork Size (T x W x L)
4.5 in (114.3 mm) x 10.0 in (254 mm) x 96 in (2438.4 mm)
Fork Spread max / min
64.75 in (1644.7 mm)
Tilt Range (forward / backward)
12° / 7°
Length to Fork Face
154.44 in (3922.8 mm) / 202.44 in (5142 mm)
Overall Width
72.0 in (1828.8 mm)
Mast Lowered Height
107.0 in (2717.8 mm)
Overhead Guard Height
92.81 in (2357.3 mm)
Turning Radius (outside)
140.0 in (3556 mm) / 185.0 in (4699 mm)
Load Distance
28.94 in (735.1 mm)
Basic Right-Angle Stacking Aisle Width
168.9 in (4290 mm) / 213.9 in (5433 mm)
Maximum Boom Lifting Height
306.31 in (7780.2 mm)
Maximum Boom Extension Length
120.0 in (3048 mm)
Wheelbase Retracted / Extended
98.0 in (2489.2 mm) / 146.0 in (3708.4 mm)
Tread Width Front
52.0 in (1320.8 mm)
Tread Width Rear
60.0 in (1524 mm)
Underclearance (full load) Minimum with Load
4.5 in (114.3 mm)
Underclearance (full load) Center of Wheelbase
6.5 in (165.1 mm)

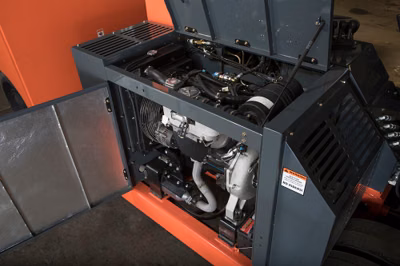

Internal Combustion Engine Make / Model
PSI 3.0L
Internal Combustion Engine Rated Horsepower @ rpm SAE
81 hp @ 3000 rpm
Internal Combustion Engine Rated Torque @ rpm SAE
149 ft-lb @ 2000 rpm
Internal Combustion Engine Number of Cylinders
4
Transmission Type
Hydrostatic
Transmission Speeds (forward / reverse)
2 / 2
Load Capacity Retracted / Extended
40,000 lb (18,143 kg) / 60,000 lb (27,215 kg)
Operator Position
Seated Rider / LH Seat
Tire Type Front/Rear
Cushion / Cushion
Wheels (x = driven) Front / Rear
2x / 2
Total Weight (empty)
58,860 lb (26,699 kg)
Tires Number (front / rear)
4 / 2
Tires Size (OD x W x ID) Front
28 x 10 x 22
Tires Size (OD x W x ID) Rear
22 x 10 x 22
Brake Service (foot) / Parking (hand)
Hydrostatic / Mechanical
Power Type
LP / Gas
Quick Enquiry
(402) 307-9483
4350 Main Ave, Fargo ND 58103
⬅ Scan the QR code for more information
Forklifts / Lift Trucks Toyota Material Handling Machines for Sale Fargo
Find this Toyota Material Handling THDA40/60 at Fargo, ND
4350 Main Ave, Fargo ND 58103
Hours of Operation*
Sat & Sun - 24 Hour On Call Service
Today12:00am - 11:00pm
Sunday12:00am - 11:00pm
Monday7:00am - 5:00pm
Tuesday7:00am - 5:00pm
Wednesday7:00am - 5:00pm
Thursday7:00am - 5:00pm
Friday7:00am - 5:00pm
*Local time zone: UTC -05:00
Similar Listings

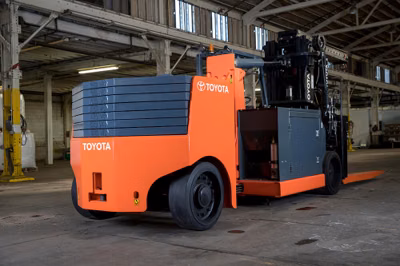

2027 Toyota Material Handling THDA25/35
