2027 Toyota Material Handling THDE4000-24
Forklifts / Lift TrucksHigh Capacity Electric Cushion Forklift
Description

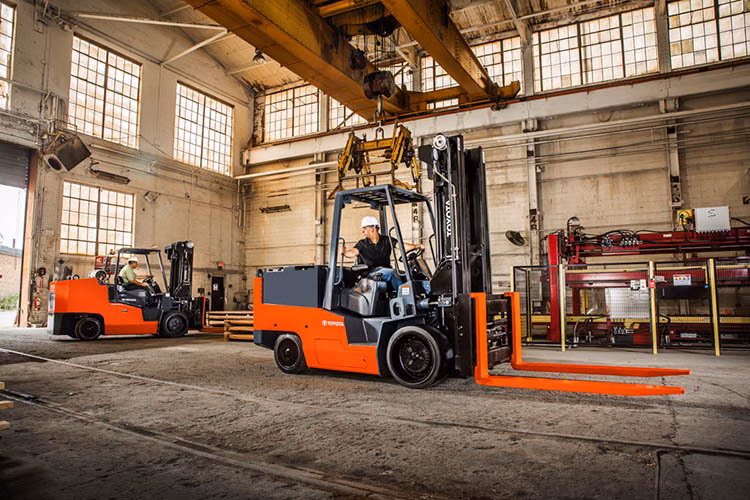

The Toyota High-Capacity Electric Cushion Forklift gives you the versatility to lift massive loads without the need of traditional IC engines. The versatile electric power and high visibility combined with a large 92-inch wheelbase means you’ll have the power you want and the maneuverability you need for your heaviest indoor duties.
Specifications
Manufacturer
Toyota Material Handling
Model
THDE4000-24
Year
2027
Category
Forklifts / Lift Trucks
Subcategory
High Capacity Electric Cushion Forklift
Load Center in (mm)
24 (610)
Maximum Fork Height (top of forks) in (mm)
108.75 (2762.3)
Fork Size (T x W x L) in (mm)
4.00 (101.6) x 7.00 (177.8) x 48 (1219)
Fork Spread max / Min (outer edge to edge)1 in (mm)
57.50 (1460.5) - 14.00 (355.6)
Tilt Range (forward / backward) deg
8/6
Length to Fork Face in (mm)
155.59 (3952.0)
Overall Width in (mm)
72.44 (1840.0)
Mast Lowered Height in (mm)
120.00 (3048.0)
Mast Extended Height (top of load backrest) in (mm)
172.38 (4378.4)
Overhead Guard Height in (mm)
102.56 (2605.0)
Turning Radius (outside) in (mm)
138.86 (3527.0)
Load Distance in (mm)
34.69 (881.1)
Basic Right-Angle Stacking Aisle Width in (mm)
173.55+Load (4408.2+Load)
Load Capacity lb (kg)
40000 (18143)
Operator Position
Seated Rider / Center Seat
Tire Type Front/Rear
Cushion / Cushion
Wheels (x = driven) Front / Rear
2x/2
Speeds Maximum Travel (fwd / rev) Full Load mph (km/h)
3.7 (6.0)
Speeds Maximum Travel (fwd / rev) No Load mph (km/h)
4.6 (7.4)
Speeds Lifting Full Load fpm (mm/sec)
16 (81)
Speeds Lifting No Load fpm (mm/sec)
21 (106)
Speeds Lowering Full Load fpm (mm/sec)
25 (127)
Speeds Lowering No Load fpm (mm/sec)
18 (91)
Drawbar Pull Maximum Full Load lb (kg)
4982 (22.2)
Drawbar Pull Maximum No Load lb (kg)
5582 (24.8)
Gradeability @ 9 Coef Maximum Full Load %
10.6
Gradeability @ .9 Coef Maximum No Load %
5.4
Total Weight (empty) lb (kg)
52600 (23859)
Weight Distribution (w/ min battery) Full Load Front lb (kg)
86210 (39104)
Weight Distribution (w/ min battery) Full Load Rear lb (kg)
6390 (2898)
Weight Distribution (w/ min battery) No Load Front lb (kg)
20670 (9376)
Weight Distribution (w/ min battery) No Load Rear lb (kg)
31930 (14483)
Tires Number (front / rear)
4/2
Tires Size (OD x W x ID) Front
28 X 10 X 22
Tires Size (OD x W x ID) Rear
22 X 12 X 16
Wheelbase in (mm)
92.00 (2336.8)
Tread Width Front in (mm)
52.27 (1327.7)
Tread Width Rear in (mm)
52.28 (1327.9)
Underclearance (full load) Minimum with Load in (mm)
4.25 (108.0)
Underclearance (full load) Center of Wheelbase in (mm)
4.75 (120.7)
Brake Service (foot) / Parking
Hydraulic/Mechanical
Electric Motors Traction Motor (60 min rating) hp (kW)
42.5 (31.7)
Electric Motors Pump Motor (15 min rating) hp (kW)
32.2 (24.0)
