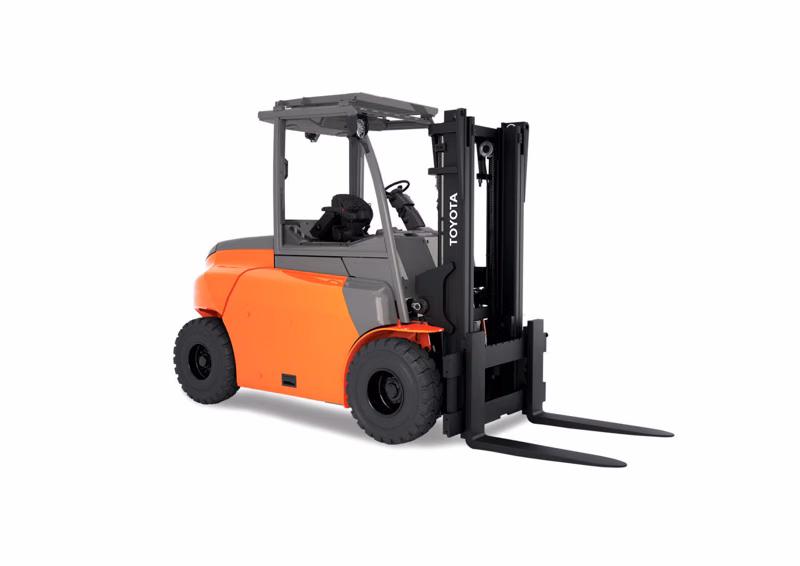

2026 Toyota Material Handling 8FBJ35
Forklifts / Lift Trucks80v Electric Pneumatic Forklift
Description
80V Electric Forklift Want to maintain an all-electric fleet, but need a rugged, outdoor workhorse? Look no further than Toyota’s 80V Electric Pneumatic Forklift. These electric powerhouses combine the power, durability, and reliability of internal combustion trucks with the ergonomics and speed of electric forklifts. With a capacity ranging from 4,000 - 17,500 lbs., these machines are ready to tackle any challenge, whether you’re operating indoors or outdoors.
Specifications
Manufacturer
Toyota Material Handling
Model
8FBJ35
Year
2026
Category
Forklifts / Lift Trucks
Subcategory
80v Electric Pneumatic Forklift
Load Center
24 (600) in (mm)
Maximum Fork Height (MFH, V mast, top of forks)
118 (3000) in (mm)
Free-Lift (top of forks)
5.5 (140) in (mm)
Fork Size (T x W x L)
2 x 5.5 x 42 (50 x 140 x 1070) in (mm)
Fork Spread (Outside) Min/Max
42 (1070) / 9.5 (240) in (mm)
Tilt Range (forward / backward)
6/11 deg
Length to Fork Face
101.4 (2575) in (mm)
Overall Width
48.8 (1240) in (mm)
Mast Lowered Height
83.1 (2110) in (mm)
Mast Extended Height (top of load backrest)
166.1 (4220) in (mm)
Overhead Guard Height
86.4 (2195) in (mm)
Turning Radius (outside)
89.4 (2270) in (mm)
Load Distance
19.7 (500) in (mm)
Basic Right-Angle Stacking Aisle Width
94.5 (2400) in (mm)
Total Weight Without Battery
9460 (4290) lb (kg)
Tires Size Front
28x9-15-14PR
Tires Size Rear
6.50-10-14PR
Wheelbase
71 (1805) in (mm)
Tread Front
39.8 (1010) in (mm)
Tread Rear
38 (965) in (mm)
Drawbar Pin Center Height
13.4 (340) in (mm)
Step Height / Floor Height
20.3/31 (515/785) in (mm)
Underclearance (full load) Minimum (mast)
4.5 (115) in (mm)
Underclearance (full load) Center of Wheelbase
5.5 (140) in (mm)
Load Capacity
7000 (3180) lb (kg)
Operator Position
Rider Seated
Wheels (x = driven) Front / Rear
2x/2
Drawbar Pull Full Load / No Load 3-Minute Ratings
2510 (1140) / 2380 (1080) lbf (N)
Drawbar Pull Full Load / No Load 5-Minute Ratings,One
2510 (1140) / 2380 (1080)
Drawbar Pull Full Load / No Load 60-Minute Ratings, Two
1060 (480) / 1100 (500) lbf (N)
Gradeability* Full Load / No Load 3-Minute Ratings
20/23 lbf (N)
Gradeability* Full Load / No Load 5-Minute Ratings, One
20/23
Gradeability* Full Load / No Load 60-Minute Ratings,Two
15/22 %
Weight Distribution (with standard battery) Full Load Front
17280 (7840) lb (kg)
Weight Distribution (with standard battery) Full Load Rear
2140 (970) lb (kg)
Weight Distribution (with standard battery) No Load Rear
4890 (2220) lb (kg)
Weight Distribution (with standard battery) No Load Rear,One
6810 (3090) lb (kg)
Brake Service (foot)
Hydraulic
Brake Parking
Hand
Control Type Drive & Load Handling
Transistor Invertor
"Speeds Maximum Travel (forward / rev) Full Load "
2890 (1310) / 2820 (1280) mph (km/h)
"Speeds Maximum Travel (forward / rev) No Load "
2890 (1310) / 2820 (1280) mph (km/h)
Speeds Lifting Full Load
1150 (520) / 1230 (560) fpm (mm/sec)
Speeds Lifting No Load
14/20 fpm (mm/sec)
Speeds Lowering Full Load
14/20 fpm (mm/sec)
Speeds Lowering No Load
9/17 fpm (mm/sec)
Power Type
Battery
Battery (6-hour ratings) Voltage / Capacity
80/ 565 V/Ah
Battery (6-hour ratings) Weight Minimum
3230 (1465) lb (kg)
Electric Motors Drive
16 (11.9) hp (kW)
Electric Motors Load Handling
19.3 (14.4) hp (kW)
Power Type Voltage
80 V
Tire Type(Front / Rear)
Solid Pneumatic
Tires Number (front / rear)
2/2
Auxiliary Hydraulic Function Specifications (for attachments)* Max Operating Pressure
2300 (162) psi (bar)
