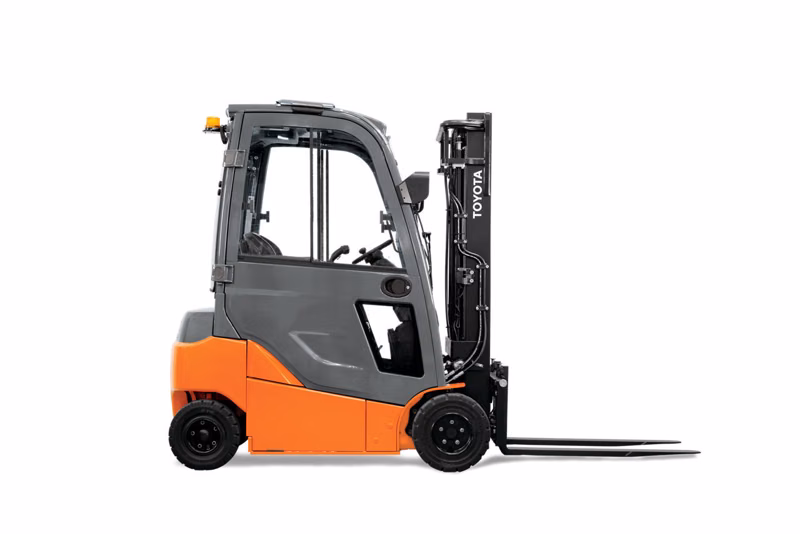

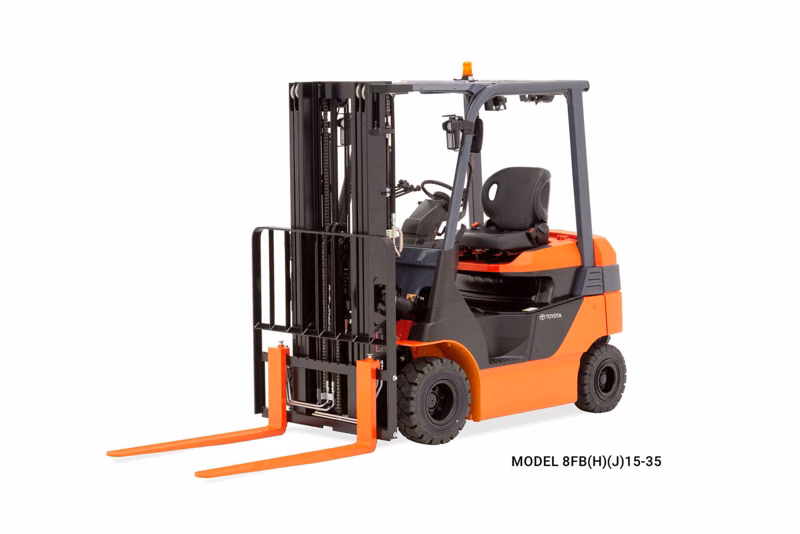

2026 Toyota Material Handling 8FBH15
Forklifts / Lift Trucks48V Electric Pneumatic Forklift
Description

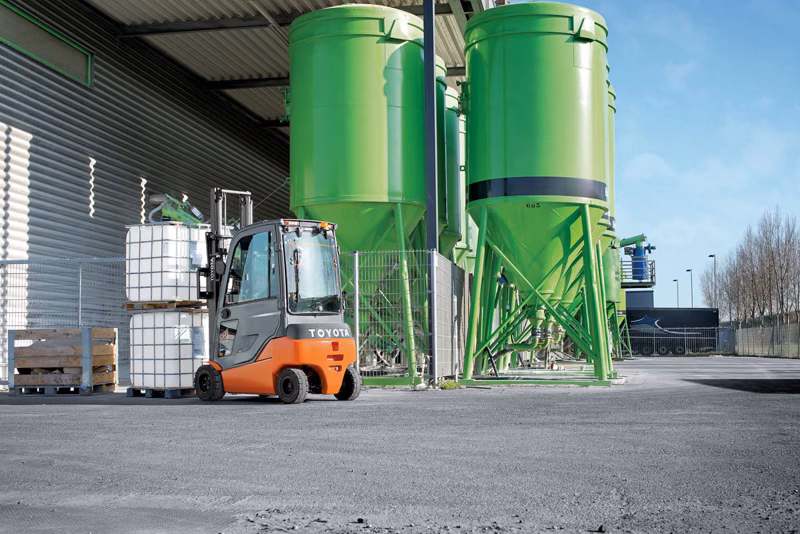

48V Electric Forklift In material handling, the last things you need are limitations. Utilizing different trucks for indoor and outdoor work creates inefficiencies that ultimately impact your bottom line. When you need raw power to tackle outdoor challenges and efficient, environmentally friendly operation indoors, look no further than Toyota’s 48V Electric Pneumatic Forklift.
Specifications
Manufacturer
Toyota Material Handling
Model
8FBH15
Year
2026
Category
Forklifts / Lift Trucks
Subcategory
48V Electric Pneumatic Forklift
Load Center
24 (600) in (mm)
Maximum Fork Height (MFH, V mast, top of forks)
118 (3000) in (mm)
Free-Lift (top of forks)
5.7 (145) in (mm)
Fork Size (T x W x L)
1.4 x 4 x 42 (35 x 100 x 1070) in (mm)
Fork Spread (Outside) Min/Max
36 (920) / 8 (200) in (mm)
Tilt Range (forward / backward)
7/11 deg
Overall Width
43.9 (1115) in(mm)
Mast Lowered Height
77.6 (1970) in (mm)
Mast Extended Height (top of load backrest)
166.1 (4220) in (mm)
Overhead Guard Height
82.9 (2105) in (mm)
Turning Radius (outside)
69.7 (1770) in (mm)
Load Distance
15.9 (405) in (mm)
Basic Right-Angle Stacking Aisle Width
85.6 (2175) in (mm)
Total Weight Without Battery
4750 (2155) lb (kg)
Tires Size Front
6.00-9-10PR
Tires Size Rear
5.00-8-8PR
Wheelbase
55.5 (1410) in (mm)
Tread Front
37.8 (960) in (mm)
Tread Rear
35.2 (895) in (mm)
Drawbar Pin Center Height
16.9 (430) in (mm)
Step Height / Floor Height
16.9 (430) / 27.4 (695) in (mm)
Underclearance (full load) Minimum (mast)
2.6 (65) in (mm)
Underclearance (full load) Center of Wheelbase
3.3 (85) in (mm)
Length to Fork Face
81.9 (2080) in (mm)
Load Capacity
3000 (1350) lb (kg)
Operator Position
Rider Seated
Wheels (x = driven) Front / Rear
2x/2
Drawbar Pull Full Load / No Load 3-Minute Ratings
2050 (930) / 1920 (870) lbf (N)
Drawbar Pull Full Load / No Load 5-Minute Ratings,One
2050 (930) / 1920 (870)
Drawbar Pull Full Load / No Load 60-Minute Ratings, Two
615 (280) / 615 (280) lbf (N)
Gradeability* Full Load / No Load 3-Minute Ratings
19/25 lbf (N)
Gradeability* Full Load / No Load 5-Minute Ratings, One
19/25
Gradeability* Full Load / No Load 60-Minute Ratings,Two
12/19 %
Weight Distribution (with standard battery) Full Load Front
8640 (3920) lb (kg)
Weight Distribution (with standard battery) Full Load Rear
1280 (580) lb (kg)
Weight Distribution (with standard battery) No Load Rear
3220 (1460) lb (kg)
Weight Distribution (with standard battery) No Load Rear,One
3400 (1540) lb (kg)
Brake Service (foot)
Hydraulic
Brake Parking
Hand
Control Type Drive & Load Handling
Transistor Invertor
"Speeds Maximum Travel (forward / rev) Full Load "
9.0 (14.5) / 9.0 (14.5) mph (km/h)
"Speeds Maximum Travel (forward / rev) No Load "
10.6 (17) / 10.6 (17) mph (km/h)
Speeds Lifting Full Load
83 (420) fpm (mm/sec)
Speeds Lifting No Load
128 (650) fpm (mm/sec)
Speeds Lowering Full Load
98 (500) fpm (mm/sec)
Speeds Lowering No Load
108 (550) fpm (mm/sec)
Power Type
Battery
Battery (6-hour ratings) Voltage / Capacity
48 / 545 V/Ah
Battery (6-hour ratings) Weight Minimum
1860 (845) lb (kg)
Electric Motors Drive
10.2 (7.6) hp (kW)
Electric Motors Load Handling
12.7 (9.5) hp (kW)
Power Type Voltage
48 V
Tire Type(Front / Rear)
Solid Pneumatic
Tires Number (front / rear)
2/2
Auxiliary Hydraulic Function Specifications (for attachments)* Max Operating Pressure
1700 (120) psi (bar)
