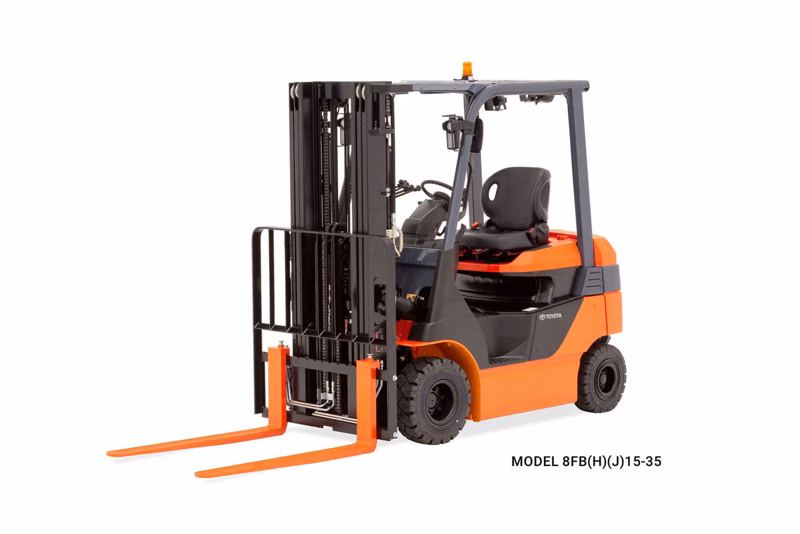

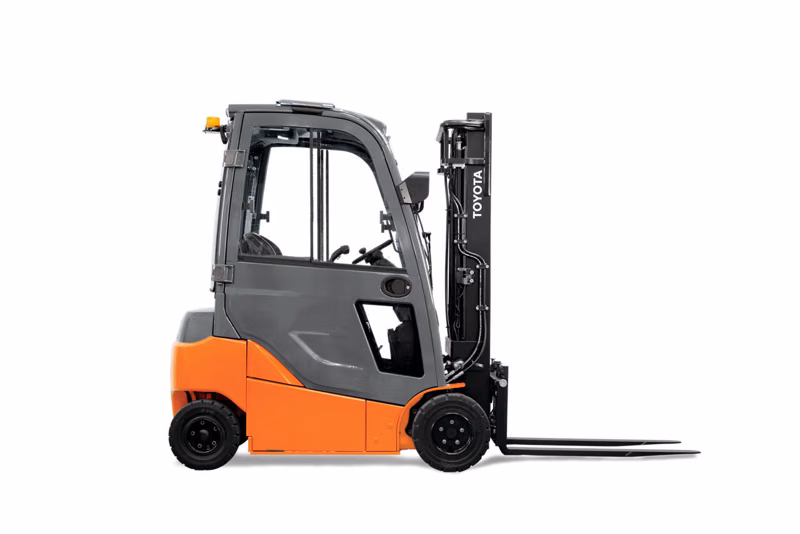

2026 Toyota Material Handling 8FBH20
Forklifts / Lift Trucks48V Electric Pneumatic Forklift
Description
48V Electric Forklift In material handling, the last things you need are limitations. Utilizing different trucks for indoor and outdoor work creates inefficiencies that ultimately impact your bottom line. When you need raw power to tackle outdoor challenges and efficient, environmentally friendly operation indoors, look no further than Toyota’s 48V Electric Pneumatic Forklift.
Specifications
Manufacturer
Toyota Material Handling
Model
8FBH20
Year
2026
Category
Forklifts / Lift Trucks
Subcategory
48V Electric Pneumatic Forklift
Load Center
24 (600) in (mm)
Maximum Fork Height (MFH, V mast, top of forks)
118 (3000) in (mm)
Free-Lift (top of forks)
4.9 (125) in (mm)
Fork Size (T x W x L)
1.4 x 4.7 x 42 (36 x 120 x 1070) in (mm)
Fork Spread (Outside) Min/Max
40.2 (1020) / 9.5 (240)) in (mm)
Tilt Range (forward / backward)
7/11 deg
Mast Lowered Height
77.8 (1975) in (mm)
Mast Extended Height (top of load backrest)
166.1 (4220) in (mm)
Overhead Guard Height
82.9 (2105) in (mm)
Turning Radius (outside)
78 (1980) in (mm)
Load Distance
16.5 (420) in (mm)
Basic Right-Angle Stacking Aisle Width
94.5 (2400) in (mm)
Total Weight Without Battery
5730 (2600) lb (kg)
Tires Size Front
21x8-9-14PR
Tires Size Rear
18x7-8-14PR
Wheelbase
59.1 (1500) in (mm)
Drawbar Pin Center Height
16.7 (425) in (mm)
Step Height / Floor Height
17.1 (435) / 27.6 (700) in (mm)
Underclearance (full load) Minimum (mast)
2.8 (70) in (mm)
Underclearance (full load) Center of Wheelbase
3.5 (90) in (mm)
Length to Fork Face
88.2 (2240) in (mm)
Overall Width
45.7 (1160) in(mm)
Tread Front
38.2 (970) in (mm)
Tread Rear
37 (940) in (mm)
Load Capacity
4000 (1800) lb (kg)
Operator Position
Rider Seated
Wheels (x = driven) Front / Rear
2x/2
Drawbar Pull Full Load / No Load 3-Minute Ratings
2510 (1140) / 2380 (1080) lbf (N)
Drawbar Pull Full Load / No Load 5-Minute Ratings,One
2510 (1140) / 2380 (1080)
Drawbar Pull Full Load / No Load 60-Minute Ratings, Two
1060 (480) / 1100 (500) lbf (N)
Gradeability* Full Load / No Load 3-Minute Ratings
20/23 lbf (N)
Gradeability* Full Load / No Load 5-Minute Ratings, One
20/23
Gradeability* Full Load / No Load 60-Minute Ratings,Two
15/22 %
Weight Distribution (with standard battery) Full Load Front
11000 (4990) lb (kg)
Weight Distribution (with standard battery) Full Load Rear
1700 (770) lb (kg)
Weight Distribution (with standard battery) No Load Rear
3880 (1760) lb (kg)
Weight Distribution (with standard battery) No Load Rear,One
4410 (2000) lb (kg)
Brake Service (foot)
Hydraulic
Brake Parking
Hand
Control Type Drive & Load Handling
Transistor Invertor
"Speeds Maximum Travel (forward / rev) Full Load "
9.0 (14.5) / 9.0 (14.5) mph (km/h)
"Speeds Maximum Travel (forward / rev) No Load "
10.3 (16.5) / 10.3 (16.5) mph (km/h)
Speeds Lifting Full Load
71 (360) fpm (mm/sec)
Speeds Lifting No Load
118 (600) fpm (mm/sec)
Speeds Lowering Full Load
98 (500) fpm (mm/sec)
Speeds Lowering No Load
98 (500) fpm (mm/sec)
Power Type
Battery
Battery (6-hour ratings) Voltage / Capacity
48 / 730 V/Ah
Battery (6-hour ratings) Weight Minimum
2560 (1160) lb (kg)
Electric Motors Drive
14.3 (10.7) hp (kW)
Electric Motors Load Handling
16.4 (12.2) hp (kW)
Power Type Voltage
48 V
Tire Type(Front / Rear)
Solid Pneumatic
Tires Number (front / rear)
2/2
Auxiliary Hydraulic Function Specifications (for attachments)* Max Operating Pressure
2100 (148) psi (bar)
