Description

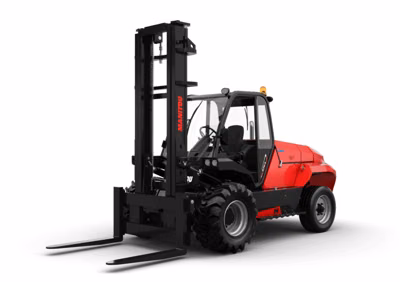

Manitou M 70-2 H D ST5
Specifications
Manufacturer
Manitou
Model
M 70-2 H D ST5
Year
2026
Category
Forklifts / Lift Trucks
Subcategory
Forklift Trucks
Operator type
Sitting
max capacity
15432 lb
Load center of gravity
24 in
Load distance, centre of drive axle to fork
32 in
Wheelbase
98 in
Service weight
21782 lb
Weight on front axle (laden) / rear axle (laden)
32968 lb / 4246 lb
Weight on front axle (Unladen) / rear axle (Unladen)
8907 lb / 12875 lb
Tires type
Pneumatic
Number of front wheels / rear wheels
2/2
Number of drive wheels
2
Front wheel gauge
67 in
Rear wheel gauge
61 in
Travel speed (laden / unladen)
36 ft/s / 14 mph
Lifting speed (laden / unladen)
1 ft/s / 1 ft/s
Lowering speed (laden / unladen)
1 ft/s / 1 ft/s
Drawbar pull (Laden / Unladen)
8060 daN / 2930 daN
Oil flow rate for attachments
21 US gpm
Sound level at the driver's ear according to DIN 12 053
78 dB
Gradeability (laden / unladen)
45 % / 27 %
Dimensions of front wheels
18R19.5 8T N20XF
Dimensions of rear wheels
265/70R19.5 6T P30HT3
Height of overhead guard (cabin)
97 in
Seat height/stand height
58 in
Overall length
224 in
Length to face of forks
165 in
Overall width
85 in
Forks section x width x length
3 in x 6 in / 59 in
Fork carriage ISO 2328 (class/form) A/B
4A
Fork carriage width
69 in
Ground clearance below mast
12 in
Ground clearance at centre of wheelbase
16 in
Aisle width for 1000 x 1200 pallet widthways
264 in
Aisle width for 800 x 1200 pallet lengthways
264 in
Turning radius
165 in
Power source
Diesel
Engine power according to ISO 1585
55.40 kW
Engine brand / model / norm
Deutz / TD 3,6 / Stage V
Rated speed
2500 rpm
Service brake
Hydraulic
Working hydraulic pressure for attachments
3336 PSI
