Description

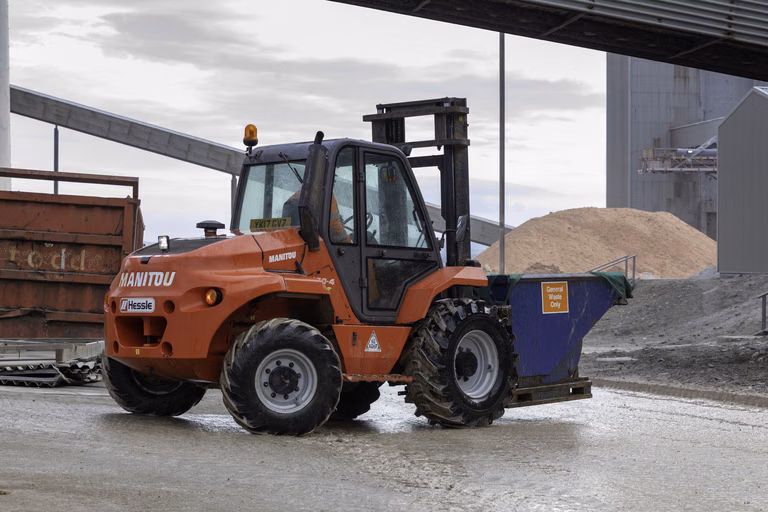

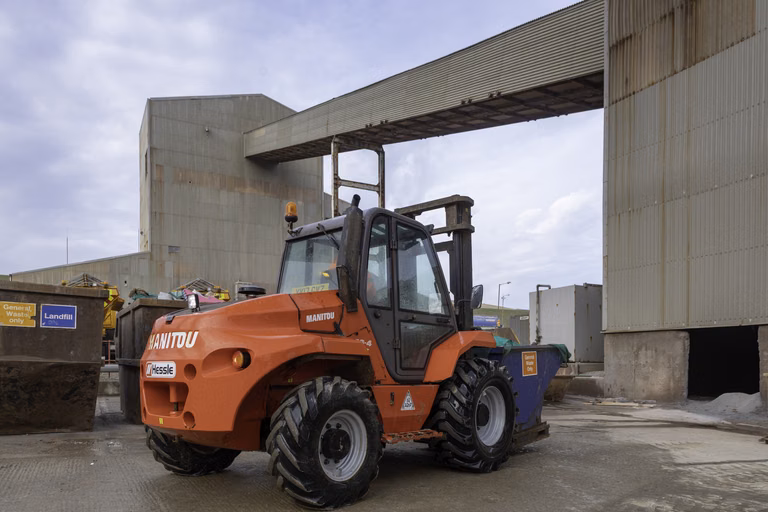

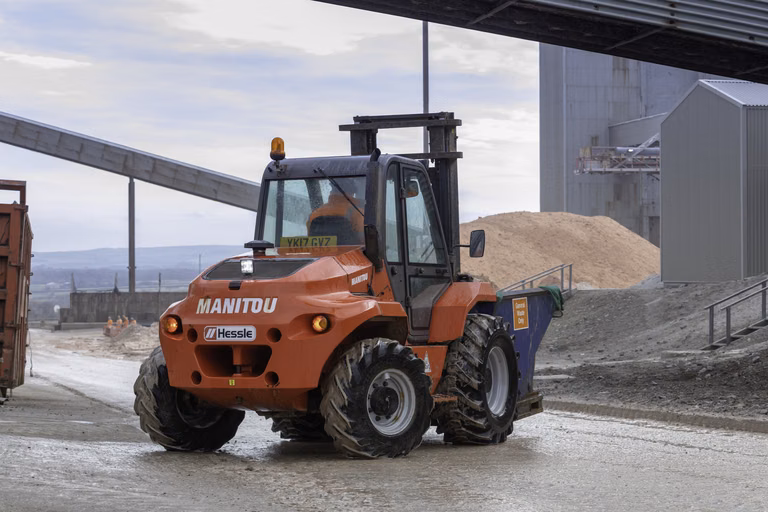

The M 50-4 rough-terrain forklift is designed for activities on difficult terrain or with obstacles. With 4 drive wheels and a ground clearance of 43 cm, this truck offers good manoeuvrability in all circumstances. To allow you to adapt to every ground context, you benefit from a choice of tires to optimize your productivity. Accessible from both sides, the suspended cab offers a spacious driving position with ergonomic controls. The high driving position offers a 360° panoramic vision for enhanced safety of the operator and his environment.
Specifications
Manufacturer
Manitou
Model
M 50-4 D ST5
Year
2026
Category
Forklifts / Lift Trucks
Subcategory
Forklift Trucks
Operator type
Sitting
max capacity
11023 lb
Load center of gravity
24 in
Load distance, centre of drive axle to fork
30 in
Wheelbase
83 in
Service weight
18353 lb
Weight on front axle (laden) / rear axle (laden)
25397 lb / 3979 lb
Weight on front axle (Unladen) / rear axle (Unladen)
7242 lb / 11111 lb
Tires type
Pneumatic
Number of front wheels / rear wheels
2/2
Number of drive wheels
4
Front wheel gauge
64 in
Rear wheel gauge
69 in
Travel speed (laden / unladen)
6 mph / 14 mph
Lifting speed (laden / unladen)
1 ft/s / 1 ft/s
Lowering speed (laden / unladen)
2 ft/s / 1 ft/s
Drawbar pull (Laden)
11000 daN
Oil flow rate for attachments
26 US gpm
Sound level at the driver's ear according to DIN 12 053
78 dB
Dimensions of front wheels
18-22,5 MPT-06
Dimensions of rear wheels
340/80 R18 XMCL
Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version)
98 in / 98 in
Seat height/stand height
57 in
Overall length
195 in
Length to face of forks
148 in
Overall width
82 in
Forks section x width x length
2 in x 6 in / 47 in
Fork carriage ISO 2328 (class/form) A/B
4A
Fork carriage width
66 in
Ground clearance below mast
12 in
Ground clearance at centre of wheelbase
17 in
Aisle width for 1000 x 1200 pallet widthways
268 in
Aisle width for 800 x 1200 pallet lengthways
268 in
Turning radius
183 in
Power source
Diesel
Engine power according to ISO 1585
55 kW
Engine brand / model / norm
Deutz / TCD 2,9 / Stage V
Rated speed
2300 rpm
Number of cylinders / Capacity of cylinders
4 - 178 in³
Service brake
Hydraulic
Working hydraulic pressure for attachments
3336 PSI
