Description

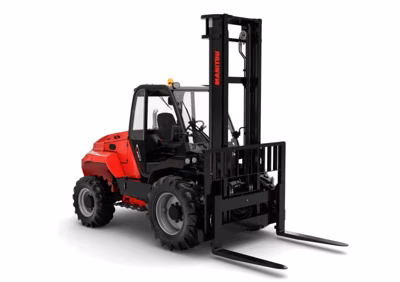

The forklift M 40-2 is a material handling truck designed for difficult terrain It is designed for the construction, timber and mining sectors, where rough-terrain capabilities are essential. With a ground clearance of 38 cm and a 74 hp engine, it ensures power and a good ability to overcome obstacles. Spacious and comfortable, the cab offers simple and intuitive controls. The monobloc frame and mast attachment contributes to an exceptional service life and improves the resale value of the machine. Maintenance is facilitated by quick access to essential components.
Specifications
Manufacturer
Manitou
Model
M 40-2 D ST5
Year
2026
Category
Forklifts / Lift Trucks
Subcategory
Forklift Trucks
Operator type
Sitting
max capacity
8818 lb
Load center of gravity
20 in
Load distance, centre of drive axle to fork
30 in
Wheelbase
81 in
Service weight
15245 lb
Weight on front axle (laden) / rear axle (laden)
20007 lb / 4057 lb
Weight on front axle (Unladen) / rear axle (Unladen)
5787 lb / 9458 lb
Tires type
Pneumatic
Number of front wheels / rear wheels
2/2
Number of drive wheels
2
Front wheel gauge
63 in
Rear wheel gauge
65 in
Travel speed (laden / unladen)
14 mph / 14 mph
Lifting speed (laden / unladen)
1 ft/s / 1 ft/s
Lowering speed (laden / unladen)
2 ft/s / 1 ft/s
Drawbar pull (Laden)
6900 daN
Oil flow rate for attachments
26 US gpm
Sound level at the driver's ear according to DIN 12 053
78 dB
Dimensions of front wheels
18-19,5 18PR A224
Dimensions of rear wheels
10R17,5 G291 GY
Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version)
96 in / 96 in
Seat height/stand height
55 in
Overall length
191 in
Length to face of forks
144 in
Overall width
81 in
Forks section x width x length
6 in x 6 in / 47 in
Fork carriage ISO 2328 (class/form) A/B
3A
Fork carriage width
66 in
Ground clearance below mast
10 in
Ground clearance at centre of wheelbase
15 in
Aisle width for 1000 x 1200 pallet widthways
219 in
Aisle width for 800 x 1200 pallet lengthways
219 in
Turning radius
134 in
Power source
Diesel
Engine power according to ISO 1585
55 kW
Engine brand / model / norm
Deutz / TCD 2,9 / Stage V
Rated speed
2300 rpm
Number of cylinders / Capacity of cylinders
4 - 178 in³
Service brake
Hydraulic
Working hydraulic pressure for attachments
3046 PSI
