Description

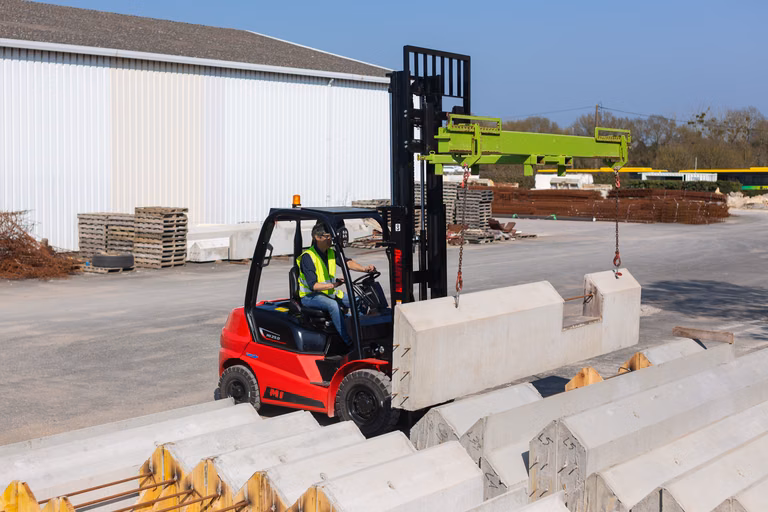

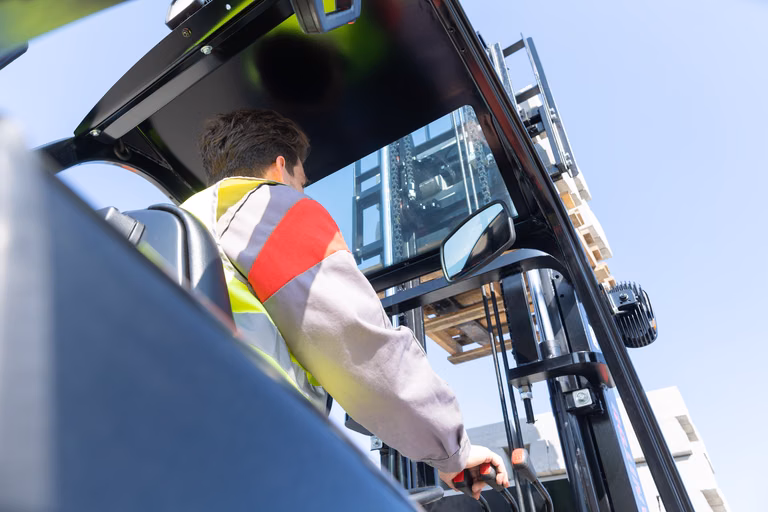

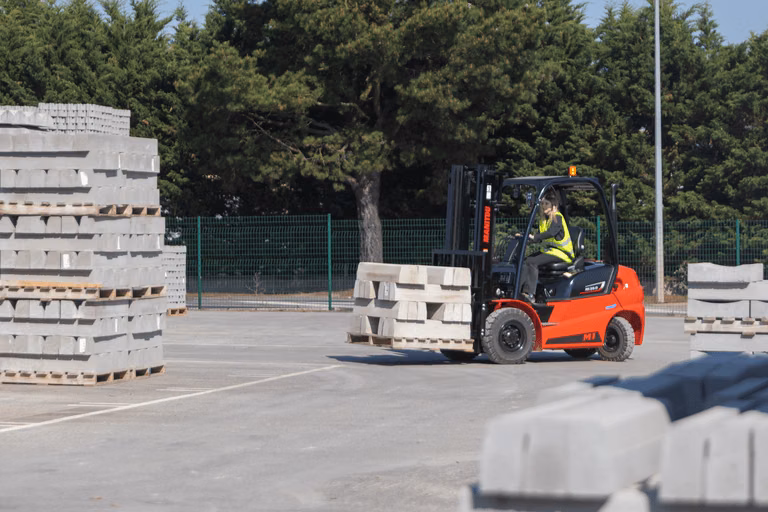

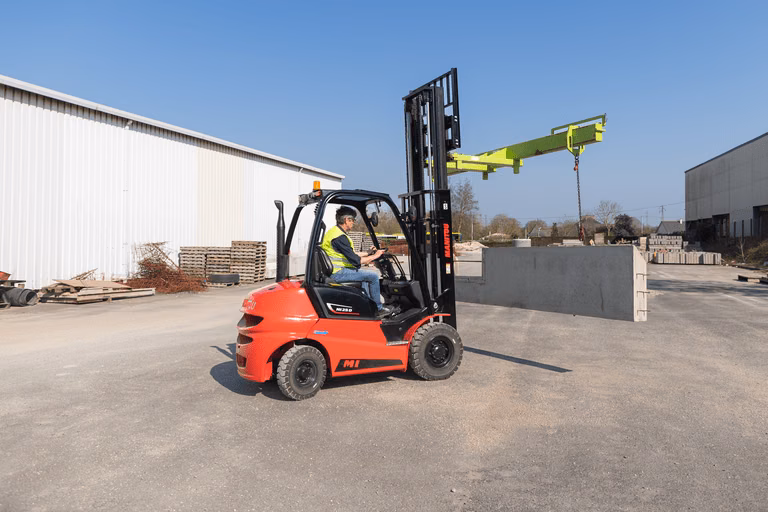

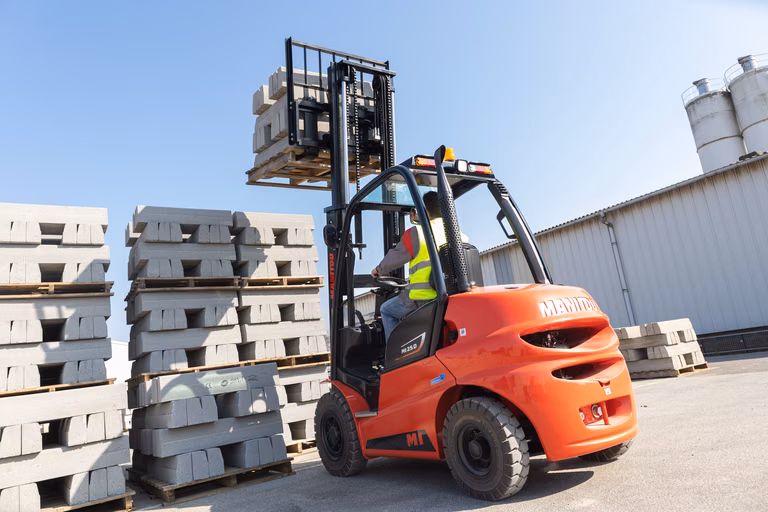

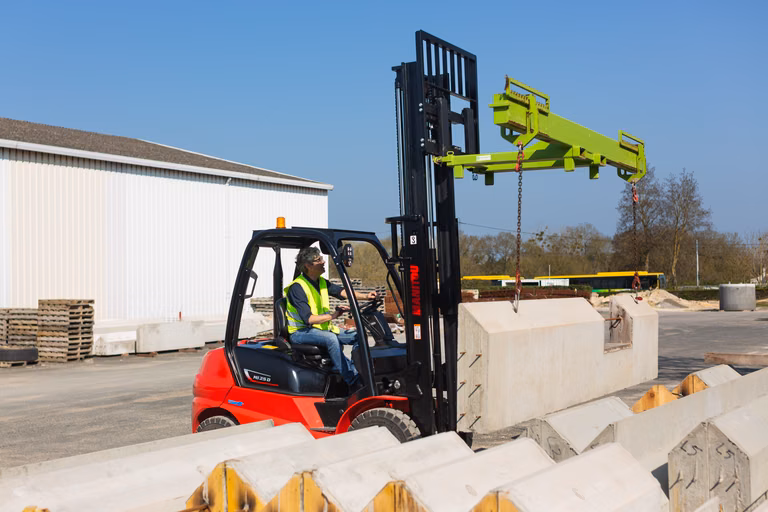

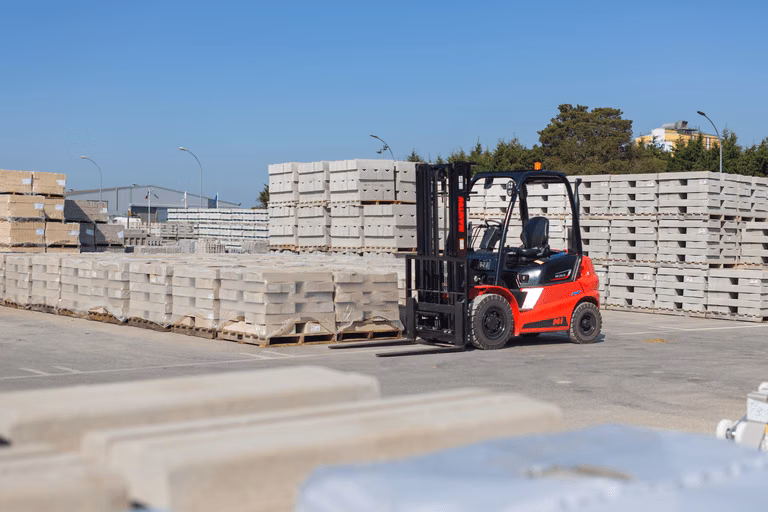

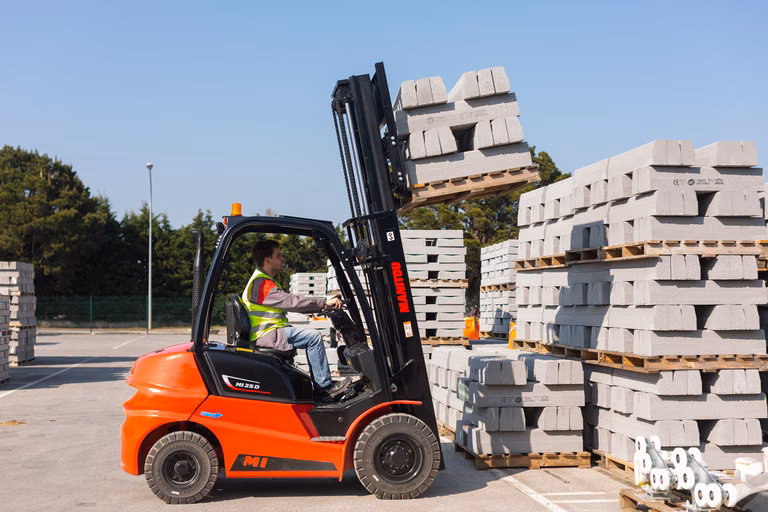

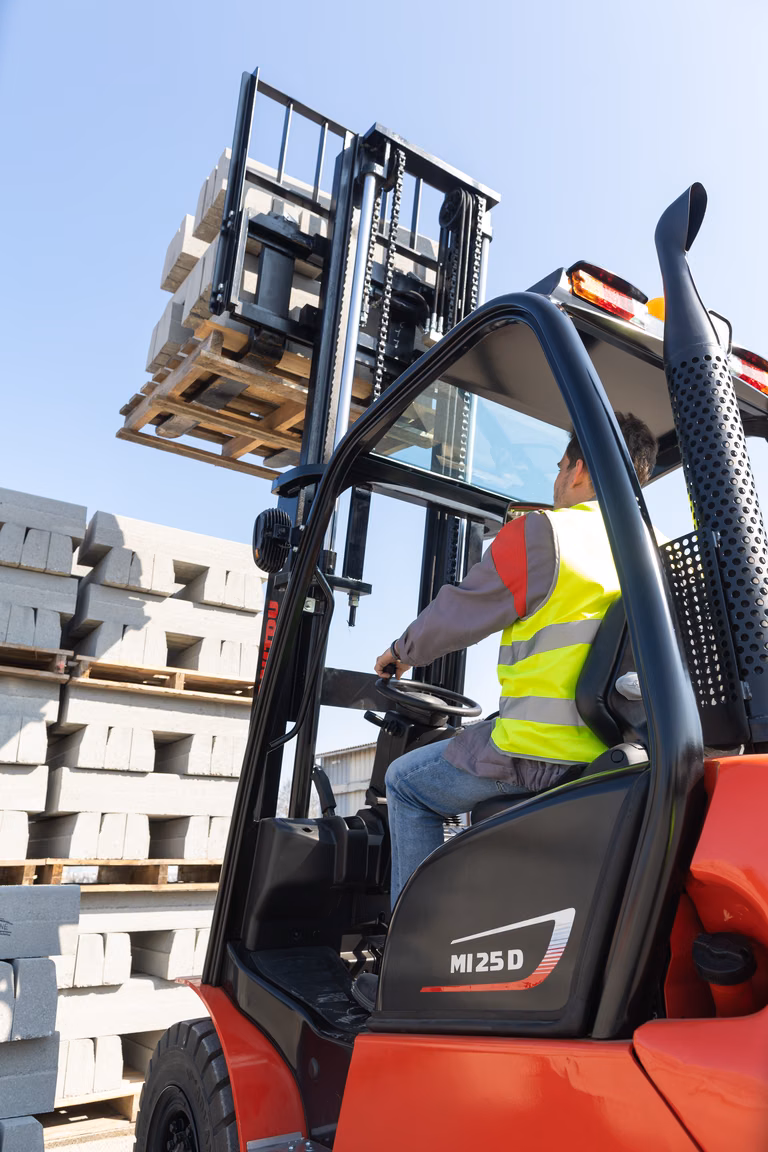

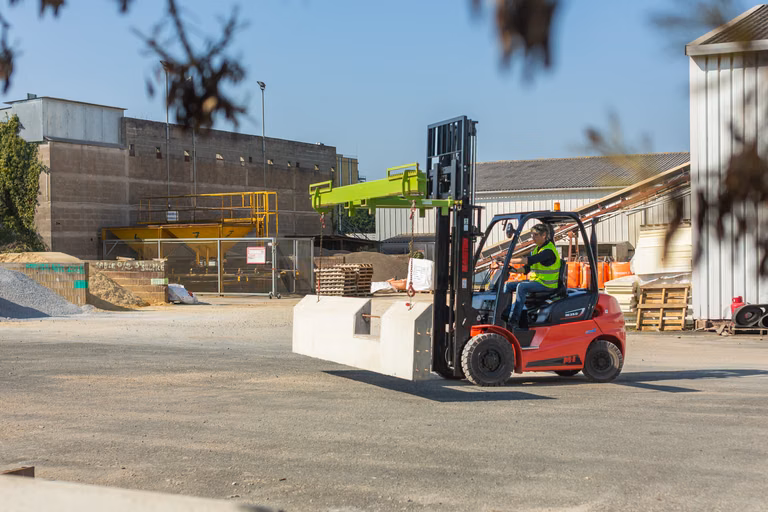

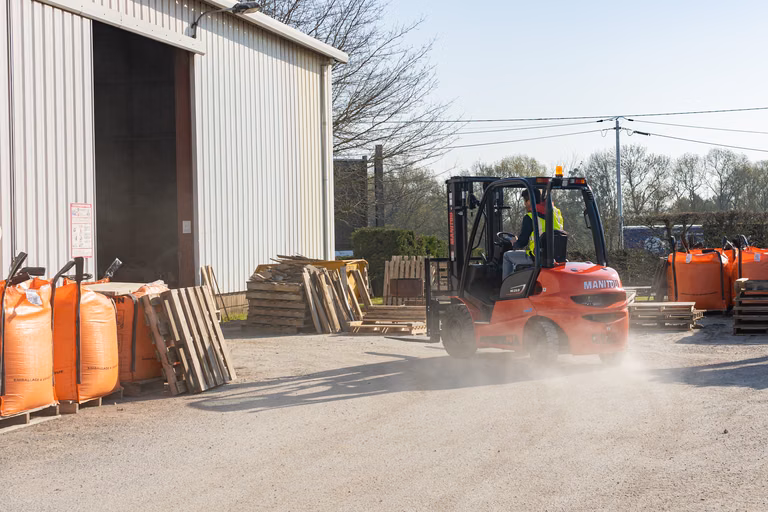

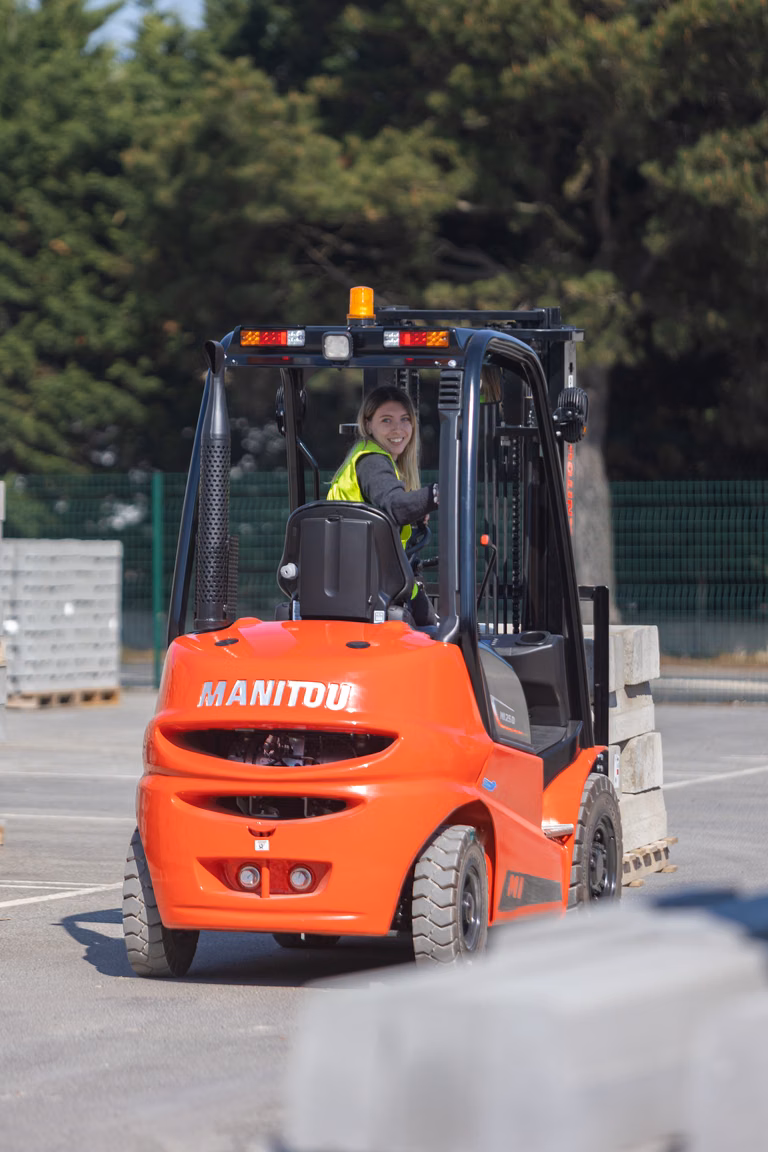

Are you looking for a handling solution that is both compact and capable of moving heavy loads with precision? Discover the performance of the Manitou MI 35 D forklift. Equipped with solid tyres and a powerful 37 kW Kubota diesel engine, our truck meets all your requirements. Move loads of up to 3500 kg and carry out all your operations efficiently, even in narrow aisles of your warehouses, logistics platforms or production sites!
Specifications
Manufacturer
Manitou
Model
MI 35 D ST5 US
Year
2026
Category
Forklifts / Lift Trucks
Subcategory
Forklift Trucks
Dimensions of front wheels
28-9-15 12
Dimensions of rear wheels
6.50-10 10
Drawbar pull (Laden / Unladen)
2000 daN / 1520 daN
Engine power according to ISO 1585
37.40 kW
Fork carriage ISO 2328 (class/form) A/B
3A
Gradeability (laden / unladen)
18 % / 20 %
Lifting speed (laden / unladen)
1 ft/s-1 ft/s
Lowering speed (laden / unladen)
1 ft/s-1 ft/s
Manufacturer
MANITOU
Max capacity
7716 lb
Measured/guaranteed mean noise level at the ear of the operator
< 84 dB
Model Name
MI 35 D ST5
Number of cylinders / Capacity of cylinders
4 - 160 in³
Number of drive wheels
2
Number of front wheels / rear wheels
2 / 2
Oil flow rate for attachments
9 US gpm
Operator type
Sitting
Power source
Diesel
Rated speed
2400 rpm
Service brake
Hydraulic
Turning radius
97 in
Weight on front axle (laden) / rear axle (laden)
16226 lb / 2205 lb
Travel speed (laden / unladen)
11 mi/h-11 mi/h
Service weight
10714 lb
Weight on front axle (Unladen) / rear axle (Unladen)
4023 lb / 6691 lb
Rear wheel gauge
38 in
Height of overhead guard (cabin)
84 in
Internal turning radius (over tyres)
6 in
Engine brand / model
Kubota / V2607-CR-E5B
Working hydraulic pressure for attachments
2321 PSI
Tyres type
Super Elastic
Load center of gravity
20 in
Load distance, centre of drive axle to fork
19 in
Wheelbase
67 in
Front wheel gauge
40 in
Seat height/stand height
48 in
Height of towing bar (coupling height)
14 in
Overall length
155 in
Length to face of forks
110 in
Overall width
48 in
Overall width - Single wheels
48 in
Overall width - Twinned wheels
68 in
Forks section / width / length
2 in x 5 in x 45 in
Fork carriage width
43 in
Ground clearance below mast
5 in
Ground clearance at centre of wheelbase
8 in
Aisle Width for pallets 1000 x 1200 crossways
165 in
Aisle width for 800 x 1200 pallet lengthways
173 in
Quick Enquiry
(402) 307-9483
4350 Main Ave, Fargo ND 58103
⬅ Scan the QR code for more information
Forklifts / Lift Trucks Manitou Machines for Sale Fargo
Find this Manitou MI 35 D ST5 US at Fargo, ND
4350 Main Ave, Fargo ND 58103
Hours of Operation*
Sat & Sun - 24 Hour On Call Service
Today12:00am - 11:00pm
Sunday12:00am - 11:00pm
Monday7:00am - 5:00pm
Tuesday7:00am - 5:00pm
Wednesday7:00am - 5:00pm
Thursday7:00am - 5:00pm
Friday7:00am - 5:00pm
*Local time zone: UTC -05:00
Similar Listings
2026 Manitou MI 25 G
Forklifts / Lift Trucks • Forklift Trucks

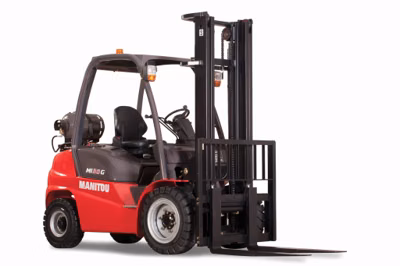

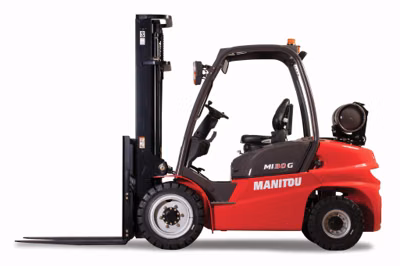

2026 Manitou MI 30 G
4
Forklifts / Lift Trucks • Forklift Trucks

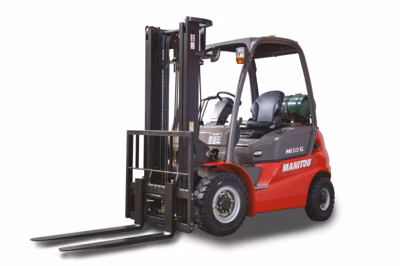

2026 Manitou MI 35 G
Forklifts / Lift Trucks • Forklift Trucks

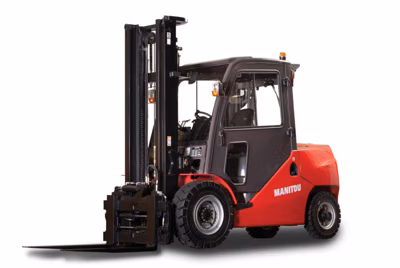

2026 Manitou MI 40 D
