Description

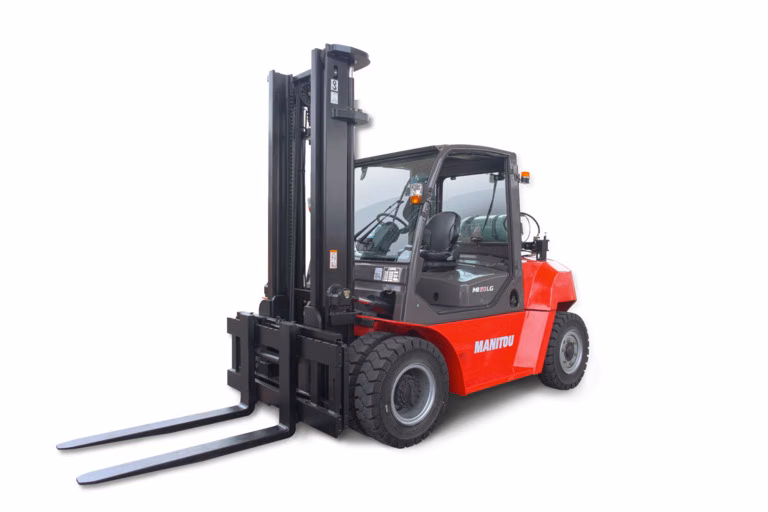

Are you after a handler for both indoor and outdoor applications that's capable of handling loads of up to 7 tonnes? The MI 70 G was designed to meet the demanding needs of professionals who don't want to compromise on performance, comfort and budget.The intuitive controls make it easy to get up and running whilst the backlit LCD screen and excellent visibility immediately enhance productivity. The MI 70 G is also easy to maintain as mechanics have instant access to internal parts, whilst those on tight budgets will find a lot to like in its robustness and reliability.
Specifications
Manufacturer
Manitou
Model
MI 70 G
Year
2026
Category
Forklifts / Lift Trucks
Subcategory
Forklift Trucks
Load centre of gravity
1 ft 11.62 in
Load distance, centre of drive axle to fork
1 ft 11.74 in
Wheelbase
7 ft 6.55 in
Service weight
21153.35 lbs
Weight on front axle (laden) / rear axle (laden)
32694.55 lbs / 3891.15 lbs
Weight on front axle (Unladen) / rear axle (Unladen)
8620.07 lbs / 12533.27 lbs
Dimensions of front wheels
8.25-15-14PR
Dimensions of rear wheels
8.25-15-14PR
Number of front wheels / rear wheels
4 / 2
Number of drive wheels
4
Front wheel gauge
4 ft 10.62 in
Rear wheel gauge
5 ft 6.92 in
Travel speed (laden / unladen)
16.77 mph / 19.26 mph
Lifting speed (laden / unladen)
1.41 ft/s / 1.50 ft/s
Lowering speed (laden / unladen)
1.57 ft/s / 1.37 ft/s
Drawbar pull (Laden / Unladen)
5900 daN / 2750 daN
Gradeability (laden)
27 %
Oil flow rate for attachments
120 l/min
Measured/guaranteed mean noise level at the ear of the operator
< 88 dB(A)
Tilt of Mast Forward (deg) / Backward (deg)
6 / 12
Height of overhead guard (cabin)
7 ft 11.66 in
Seat height/stand height
4 ft 5.14 in
Height of towing bar (coupling height)
2 ft 3.95 in
Overall length
15 ft 9.13 in
Length to face of forks
11 ft 9.10 in
Overall width
6 ft 6.34 in
Forks section / width / length
2.55 in x 5.90 in / 4 ft 0.03 in
Fork carriage ISO 2328 (class/form) A/B
4A
Fork carriage width
5 ft 6.92 in
Ground clearance below mast
7.48 in
Ground clearance at centre of wheelbase
10.62 in
Overall width - Single wheels
6 ft 6.34 in
Aisle width for 800 x 1200 pallet lengthways
17 ft 7.69 in
Internal turning radius (over tyres)
4 ft 0.11 in
Turning radius
10 ft 11.10 in
Power source
Lpg
max capacity
15432.35 lbs
Engine brand / model
PSI / 4,3L
Engine power according to ISO 1585
74 kW
Rated speed
2300 rpm
Number of cylinders / Capacity of cylinders
6 - 262.40 in³
Fuel consumption according to VDI cycle
14.90 l/h
Service brake
Hydraulic
Working hydraulic pressure for attachments
2828.23 PSI
